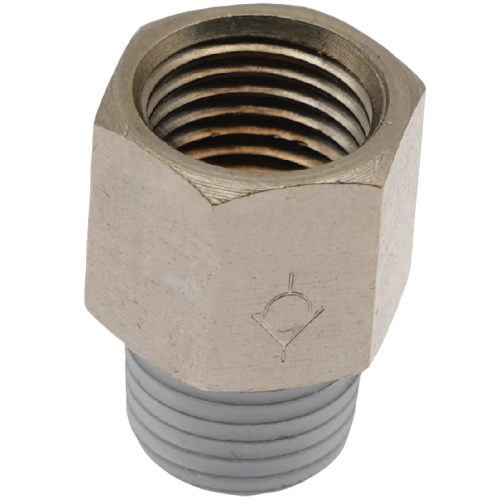

Airtac X-APCVF Check Valve Connector - Male/Female Thread Type X-APCVF0404
AirTAC X-APCVF0404 Male-Female Threaded One-Way Fitting Specifications
- Model: X-APCVF0404
- Type: Internal/External Thread Check Valve (Unidirectional Flow)
- Thread Standard: ISO 228 G1/8 (Internal) × PT1/8 (External)
- Material: Brass with nickel plating (body), NBR seals
- Max Working Pressure: 1.0 MPa
- Min Operating Pressure: 0.2 MPa
- Cracking Pressure: 0.02 MPa (adjustable variant available)
- Temperature Range: -20℃ to 80℃
- Flow Rate: 300 NL/min @ 0.5 MPa
- Weight: 28g ±2g
- Dimensions: 40mm(L) × 18mm(W) × 18mm(H)
- Thread Engagement Length: 8mm (internal), 10mm (external)
- Vibration Resistance: ≤20 m/s²
- Certification: RoHS compliant
Precision-engineered check valve featuring dual-thread configuration for direct pipeline integration. The chrome-plated brass construction ensures corrosion resistance in humid environments, while the spring-loaded poppet design enables instant reverse flow blocking. Includes anti-vibration locking grooves for stable operation under mechanical stress.
- Pneumatic circuit protection against backflow in automated machinery
- Vacuum system isolation in packaging equipment
- Modular pneumatic component clusters requiring compact connections
- Coolant line safety valves in CNC machining centers
- Medical gas delivery systems requiring directional control
Installation guidelines:
Apply 2-3 wraps of PTFE tape on external threads. Tighten to 12-15 N·m torque.
Arrow marking must align with primary flow direction. For vertical installations,
maintain minimum 5mm clearance below the valve body for service access.
