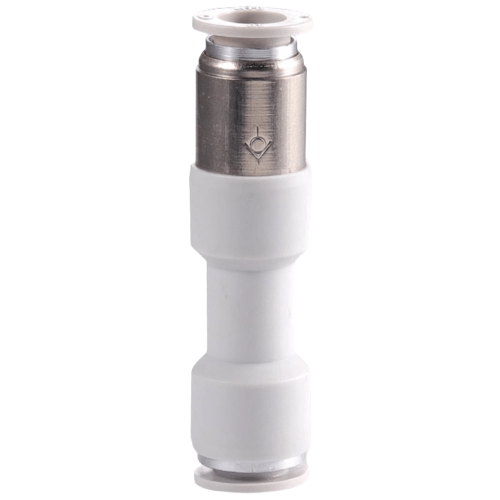

Airtac X-APCVU Adapter - Tube End Type Check Valve X-APCVU12
AirTAC X-APCVU12 One-Touch Fitting (Tube End Type) Specifications
- Model: X-APCVU12
- Type: Check valve (Tube end connection)
- Thread specification: R1/8 (G1/8 optional)
- Material: Stainless steel body + PPS resin lever
- Seal material: FKM fluorocarbon rubber
- Operating pressure: 0.1–1.0 MPa
- Proof pressure: 1.5 MPa
- Temperature range: -20℃ to 80℃
- Cracking pressure: 0.02 MPa (minimum)
- Flow capacity: 400 NL/min (at 0.5 MPa)
- Tube compatibility: Ø12mm polyurethane/nylon tubing
- Weight: 118g ±2g
- Dimensions: 40mm(L) × 25mm(W) × 25mm(H)
- Vibration resistance: 10–55Hz (X/Y/Z axes)
- Certification: RoHS compliant
Premium check valve featuring instant tube connection/disengagement with 360° rotatable union. The dual-lock lever mechanism ensures secure tubing retention while allowing single-handed operation. Internal precision spring maintains consistent cracking pressure across thermal cycles. Corrosion-resistant construction suitable for humid environments.
- Pneumatic circuit reverse flow prevention
- Vacuum system pressure maintenance
- Automated assembly line tooling
- Medical gas delivery systems
- Semiconductor fab equipment
- Mobile hydraulic service units
Installation note:
Arrow direction must align with flow path. For optimal performance:
- Cut tube ends square (90°±2° tolerance)
- Insert tube until it bottoms out, then pull back 1mm
- Apply 2-3 wraps of PTFE tape on male threads
- Torque limit: 15–20 N·m
