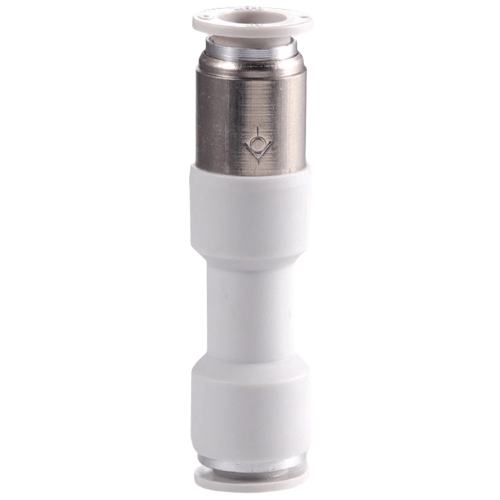

Airtac X-APCVU Adapter - Tube End Type Check Valve X-APCVU4
AirTAC X-APCVU4 Tube-End Type One-Touch Fitting Check Valve Specifications
- Model: X-APCVU4
- Type: Push-in tube fitting with integrated check valve
- Port size: 4mm (1/8") tube OD compatible
- Material: Nickel-plated brass body / PPS resin lever
- Seal material: NBR (standard) or FKM (optional)
- Operating pressure: 0.05–1.0 MPa
- Burst pressure: ≥3.0 MPa
- Temperature range: -5℃ to 80℃ (NBR) / -5℃ to 150℃ (FKM)
- Cracking pressure: 0.01 MPa
- Flow rate: 25 L/min (ΔP=0.1 MPa)
- Weight: 80g ±5%
- Dimensions: 30mm(L) × 20mm(W) × 18mm(H)
- Fluid compatibility: Air, inert gases, water (non-corrosive fluids)
- IP rating: IP40 (dust protected)
Compact inline check valve with instant tube connection capability, featuring a manual override lever for system bleeding. The spring-loaded poppet design ensures minimal pressure drop while preventing reverse flow. Corrosion-resistant construction with visible flow direction indicator.
- Pneumatic cylinder exhaust line backflow prevention
- Vacuum system pressure maintenance circuits
- Medical device gas line safety interlocks
- Packaging machine air circuit isolation
- Laboratory instrument gas distribution
Installation guidelines:
Install with arrow marking aligned to flow direction. For tube insertion,
push straight until audible click. Depress release collar fully during
tube removal. Periodic seal inspection recommended every 6 months in
high-cycling applications.
| Property | Property Value |
|---|---|
| sku | X-APCVU4 |
