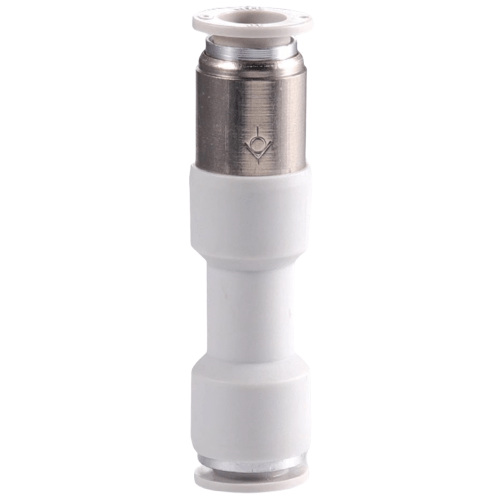

Airtac X-APCVU Adapter - Tube End Type Check Valve X-APCVU8
AirTAC X-APCVU8 Tube Fitting Type Check Valve Technical Details
- Model: X-APCVU8
- Type: Direct-acting inline check valve (tube end connection)
- Port configuration: One-way flow control
- Thread standard: G1/8 (BSPP)
- Max operating pressure: 1.0 MPa
- Min cracking pressure: 0.01 MPa
- Flow capacity: 500 NL/min (at 0.5 MPa)
- Temperature range: -5℃ to 80℃
- Body material: Brass (C3604) with electroless nickel plating
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Weight: 42g ±2g
- Dimensions: 34mm(L) × 16mm(W) × 16mm(H)
- Tube compatibility: Ø8mm polyurethane/nylon tubing
- Leakage rate: <10 cm³/min (at 0.5 MPa)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Compact inline check valve with integrated tube fitting, designed for branch line installation in pneumatic systems. Features low cracking pressure and bubble-tight sealing, with 180° rotatable collar for flexible tubing orientation. The anti-vibration structure maintains consistent performance in mobile applications.
- Preventing reverse flow in pneumatic cylinder circuits
- Air preparation unit bypass protection
- Vacuum system pressure maintenance
- Medical equipment gas flow control
- Robotic end effector air supply lines
Installation guidelines:
Arrow direction must align with intended flow path. Use two wrenches during
assembly - one to hold valve body and another to tighten nut (recommended
torque 12-15N·m). Install downstream of filter regulator for optimal performance.
