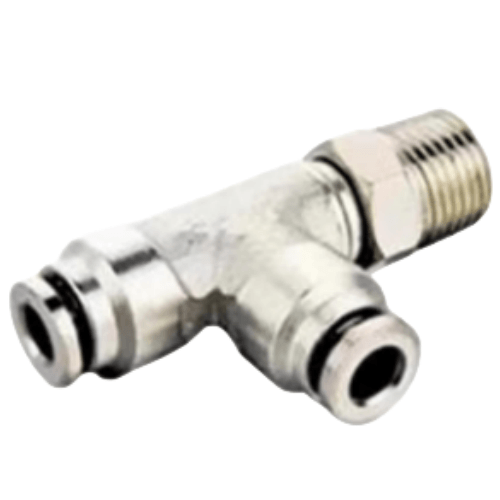

Airtac X-APDT Adapter - Full Brass Threaded Side Tee X-APDT1002
AirTAC X-APDT1002 Full Copper Threaded Side Tee Fitting Specifications
- Model: X-APDT1002
- Type: Brass threaded tee connector (side port configuration)
- Material: Lead-free CW617N brass (RoHS compliant)
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Thread standard: Metric (M5×0.8) / Optional BSPP (G1/8)
- Pressure rating: 0.05-1.0 MPa (7-145 PSI)
- Burst pressure: ≥4.0 MPa (580 PSI)
- Temperature range: -20℃ to 120℃ (NBR seals)
- Fluid compatibility: Compressed air, inert gases, vacuum
- Weight: 28g ±2g
- Dimensions: 24mm (L) × 18mm (W) × 28mm (H)
- Thread engagement depth: 6.5mm ±0.3mm
- Surface roughness: Ra ≤3.2μm (internal flow path)
- Certifications: ISO 8434-1, ISO 1179-1
Precision-engineered brass tee connector featuring triple O-ring seals (NBR) for leak-free pneumatic connections. The 90° side port design enables compact plumbing configurations with optimized flow dynamics. Corrosion-resistant nickel plating ensures durability in humid environments. Compatible with both push-to-connect and threaded tubing systems.
- Branch line connections in pneumatic control panels
- Vacuum system distribution networks
- Medical equipment gas line manifolds
- Packaging machine air circuit splitting
- Laboratory instrument pneumatic distribution
Installation notes:
Apply 2-3 drops of silicone-free lubricant on threads before assembly.
Maximum recommended torque: 1.5 N·m (13 lb-in).
For vacuum applications, install with vertical main port orientation.
- Cv value: 0.12 (at 0.5 MPa)
- Effective flow area: 1.8 mm²
- Pressure drop: ≤0.02 MPa at 10 NL/min flow rate
