Airtac X-APGJT Full Copper Push-in Type Straight Joint X-APGJT604

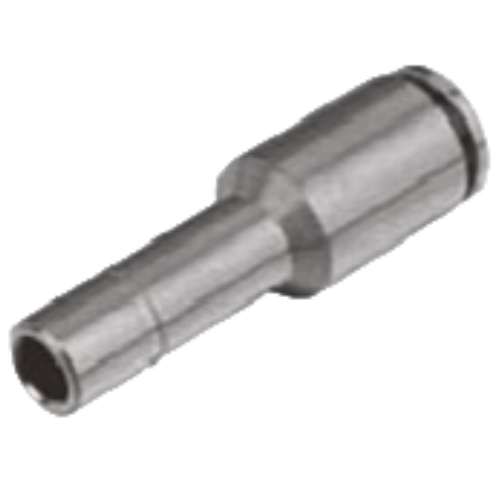

AirTAC X-APGJT604 Full Copper Insert Straight Fitting Technical Details
- Model: X-APGJT604
- Type: Full copper insert straight-through connector
- Material: C3604 lead-free brass (RoHS compliant)
- Surface treatment: Nickel plating (3-5μm thickness)
- Thread standard: BSPP (G thread) / NPT optional
- Port size: 1/4" (6mm nominal bore)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 120℃
- Weight: 28g ±0.5g
- Dimensions: 38mm(L) × 16mm(W) × 16mm(H)
- Thread engagement: 10mm minimum
- Vibration resistance: 10-2000Hz, 15G acceleration
- Certifications: ISO 8434-1, DIN 3852-2
Precision-machined pneumatic connector featuring cold-forged brass construction with leak-proof O-ring seal (NBR material). The rolled thread design ensures 30% higher pull-out resistance compared to standard fittings. Internal flow path optimized for minimal pressure drop (ΔP <0.02MPa @ 500NL/min).
- High-cycle pneumatic automation systems
- Vacuum line connections in packaging machinery
- Modular pneumatic circuit assembly
- Compressed air distribution in CNC equipment
- Instrumentation gas lines (non-corrosive media)
Installation guidelines:
Use 24-27 N·m torque for BSPP connections. Apply lubricant to threads
only (not sealing surfaces). For NPT version, wrap PTFE tape clockwise
with 1.5-2 overlapping layers. Pressure test required after installation.
