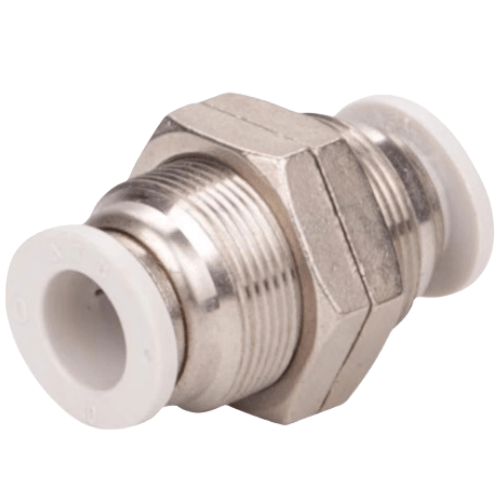

Airtac X-APM Connector - Bulkhead Straight X-APM4
AirTAC X-APM4 Bulkhead Straight Fitting Specifications
- Model: X-APM4
- Type: Bulkhead straight-through connector (male-threaded both ends)
- Thread standard: G1/4 (BSPP) / Optional NPT1/4
- Material: SUS304 stainless steel body / NBR sealing ring
- Surface treatment: Nickel-plated (3-5μm thickness)
- Max working pressure: 1.0 MPa
- Proof pressure: 1.5 MPa
- Burst pressure: 3.0 MPa
- Temperature range: -20℃ to 100℃ (NBR seal)
- Weight: 28g ±2g
- Dimensions: 30mm (L) × 20mm (W) × 15mm (H)
- Installation torque: 1.5-2.0 Nm
- Fluid compatibility: Air, inert gases, vacuum
- Certifications: RoHS compliant, ISO 9001 manufactured
High-pressure bulkhead fitting designed for panel/partition mounting in pneumatic systems. Features corrosion-resistant stainless steel construction with precision-machined threads for leak-free transitions through equipment walls. The dual O-ring design ensures bi-directional sealing under vibration.
- Pneumatic control cabinet pass-through connections
- Modular automation equipment interfaces
- CNC machine tool air line distribution
- Laboratory instrument gas supply systems
- Medical device pneumatic component integration
Installation protocol:
Use backup wrench on hex flats during assembly. Apply thread sealant
(PTFE tape/paste) on male threads only. Verify panel thickness between
1-5mm for proper compression seal. Post-installation pressure test required.
- 360° rotatable connector head for flexible tubing alignment
- Reusable design (max 3 disassembly cycles)
- Anti-vibration flange with integrated rubber washer
- CNC-machined flow path (Cv=0.12)
| Property | Property Value |
|---|---|
| sku | X-APM4 |
