Airtac X-APMFT All Brass Female Thread Bulkhead Straight Fitting X-APMFT1203

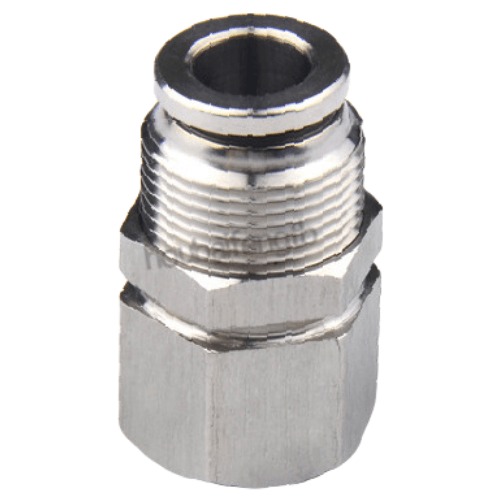

AirTAC X-APMFT1203 Full Brass Partition Internal Thread Straight Connector Specifications
- Model: X-APMFT1203
- Material: Lead-free brass (RoHS compliant)
- Thread type: Internal parallel thread (BSPP)
- Port size: 1/8" (G1/8 ISO228-1 standard)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -5℃ to 120℃ (23℉ to 248℉)
- Surface treatment: Electroless nickel plating (3-5μm)
- Seal material: NBR O-ring (optional FKM/Viton®)
- Torque resistance: ≤30 N·m installation torque
- Weight: 48g ±2g (Approx. 1.69 oz)
- Dimensions: 30mm(L) × 16mm(Dia) × 16mm(Thread depth)
- Flow coefficient (Cv): 0.22
- Leakage rate: ≤0.1 NL/min @ 0.5 MPa
Precision-machined brass connector featuring dual internal sealing surfaces and partition wall design for secure branch line connections. The hexagonal body allows 360° tool access in confined spaces. Corrosion-resistant nickel plating ensures durability in humid environments. Compatible with air, inert gases, and water (non-potable) when using appropriate seals.
- Modular pneumatic circuit distribution blocks
- CNC machine tool coolant line junctions
- Industrial robot end-effector air supply systems
- Compressed air instrumentation manifolds
- Hydraulic test bench plumbing (low-pressure)
Installation protocol:
Apply 2-3 wraps of PTFE tape clockwise on male threads.
Tighten until partition wall contacts mating surface - avoid over-torquing.
For vertical mounting, orient hex flats horizontally for wrench access.
