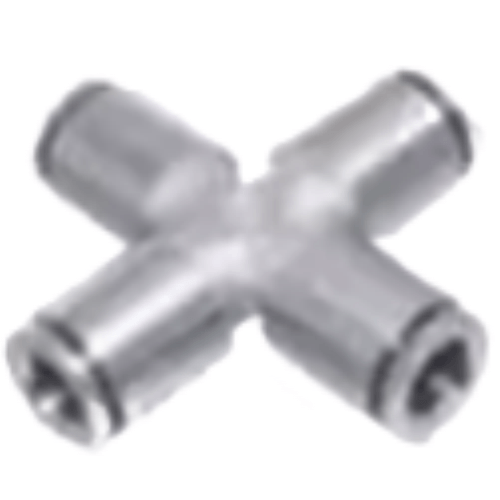

Airtac X-APZT Full Brass Cross Connector X-APZT12
AirTAC X-APZT12 Full Brass Four-Way Tee Fitting Specifications
- Model: X-APZT12
- Material: C3604 Free-cutting brass (lead-free compliant)
- Port configuration: 4-way (1 inlet, 3 outlets)
- Thread type: Metric M5×0.8 (BSPP/NPT optional)
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 80℃
- Surface treatment: Electro-nickel plated (8-12μm thickness)
- Weight: 148±2g
- Dimensions: 25mm(L) × 25mm(W) × 35mm(H)
- Flow coefficient (Cv): 0.15
- Leakage rate: ≤0.1 NL/min @ 0.5 MPa
- Certification: RoHS compliant
Precision-machined brass manifold for pneumatic distribution systems, featuring 360° rotatable ports for flexible piping layouts. The hexagonal body design allows secure wrench tightening (14mm AF) while maintaining compact dimensions. Internal flow channels are deburred and polished to minimize pressure drop.
- Modular pneumatic control panels
- Multi-axis pneumatic tooling systems
- Injection molding machine air circuits
- Automated packaging line distribution nodes
- Laboratory pneumatic instrument clusters
Installation guidelines:
Apply 20-30 N·m torque during assembly. Use thread sealant (PTFE tape or liquid sealant)
on male threads only. Avoid overtightening - brass fittings become pliable at 250℃.
