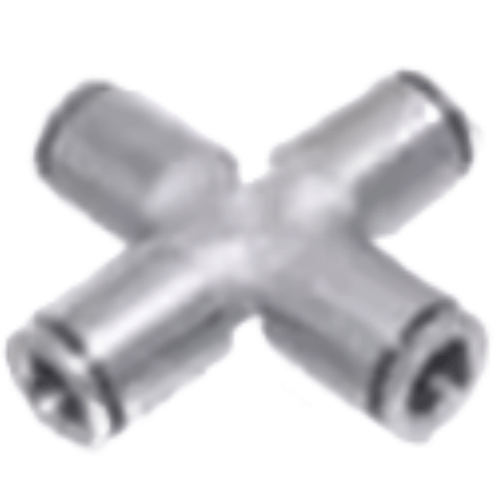

Airtac X-APZT Full Brass Cross Connector X-APZT4
AirTAC X-APZT4 Full-Brass Four-Way Tee Fitting Specifications
- Model: X-APZT4
- Type: Pneumatic brass cross connector
- Material: Lead-free CW617N brass body (RoHS compliant)
- Seal material: NBR rubber O-rings (oil-resistant)
- Port configuration: 4-way equal diameter
- Thread standard: PT1/8 (BSPP) × 4 ports
- Alternative thread options: NPT1/8 available on request
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥4.5 MPa
- Temperature range: -20℃ to 120℃ (static air)
- Surface treatment: Electroless nickel plating (3-5μm)
- Weight: 48g ±2g
- Dimensions: 24mm(L) × 24mm(W) × 24mm(H) (cube body)
- Thread engagement depth: 8mm per port
- Flow rate: 350 NL/min at 0.5MPa
- Leakage rate: <0.1 bubbles/min under 0.5MPa
Heavy-duty brass distribution block featuring precision-machined threads and corrosion-resistant construction. Designed for creating compact pneumatic branch circuits with equal pressure distribution across all ports. Features recessed O-ring grooves for vibration-resistant sealing and hexagonal wrench flats for tool installation.
- Multi-actuator pneumatic systems in packaging machinery
- Air supply distribution in CNC tool changers
- Laboratory pneumatic test benches
- Robotic gripper manifold assemblies
- Compressed air monitoring systems with multiple sensors
Installation protocol:
Apply PTFE tape clockwise on male threads (2.5 wraps recommended).
Tighten to 12-15 N·m torque using 17mm wrench. Avoid overtightening
to prevent O-ring compression set. Maximum angular misalignment
between ports ≤3°.
| Property | Property Value |
|---|---|
| sku | X-APZT4 |
