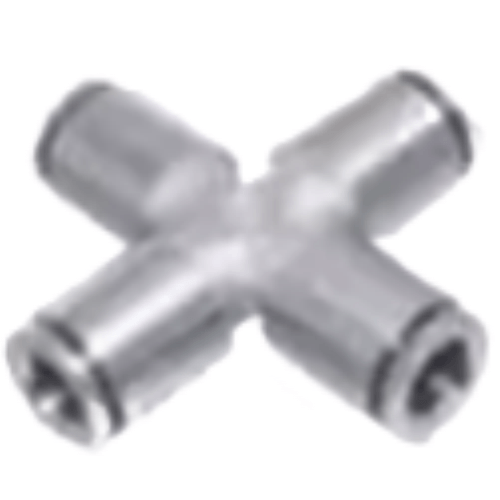

Airtac X-APZT Full Brass Cross Connector X-APZT6
AirTAC X-APZT6 All-Copper Four-Way Tee Fitting Technical Details
- Model: X-APZT6
- Type: 4-way pneumatic manifold connector
- Material: Lead-free brass alloy (CuZn39Pb3)
- Thread type: G1/8 (ISO228-1 standard)
- Port configuration: 4-way equal cross
- Max working pressure: 1.5 MPa (217 psi)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Temperature range: -20℃ to 120℃
- Surface treatment: Electroplated nickel (3-5μm thickness)
- Weight: 82g ±2g
- Dimensions: 32mm(L) × 32mm(W) × 32mm(H)
- Seal compatibility: Compatible with air, water, and non-corrosive gases
- Vibration resistance: 10-2000Hz, 15G acceleration
- Certifications: RoHS compliant, REACH SVHC-free
Precision-machined four-way pneumatic distribution block featuring corrosion-resistant brass construction with leak-proof tapered thread design. The symmetrical cross configuration enables balanced airflow distribution in compact pneumatic systems. Nickel plating enhances surface hardness (≥400HV) and provides oxidation resistance.
- Modular pneumatic circuit branching in automation equipment
- Pressure gauge manifold connections
- Compressed air distribution in CNC machinery
- Pneumatic tool air supply networks
- Laboratory gas line manifolds
Installation guidelines:
Apply PTFE tape clockwise on male threads (2-3 wraps).
Torque specification: 12-15 N·m.
Avoid cross-threading by hand-tightening first 3 turns.
Not recommended for continuous rotational motion applications.
- Flow coefficient (Cv): 0.18
- Effective sectional area: 1.2 mm²
- Pressure drop: ≤0.02 MPa @ 0.5 MPa inlet (5 L/min flow)
