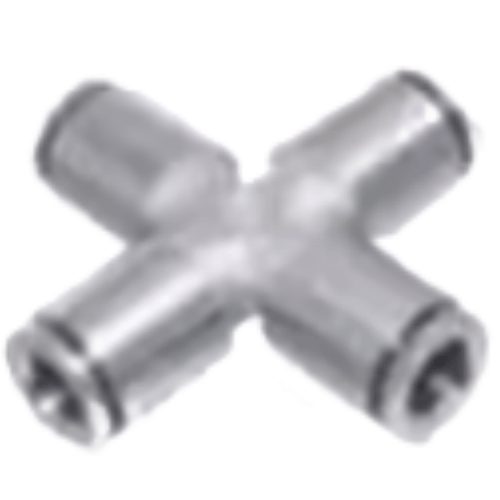

Airtac X-APZT Full Brass Cross Connector X-APZT8
AirTAC X-APZT8 Full Brass Four-Way Fitting Specifications
- Model: X-APZT8
- Type: 4-way straight thread tee connector
- Material: C3604 lead-free brass (RoHS compliant)
- Surface treatment: Nickel-plated (3-5μm thickness)
- Thread type: PT1/8 (BSPP) female threads at all ports
- Port configuration: 4-way equal diameter distribution
- Max working pressure: 1.5 MPa (217 PSI)
- Pressure range: 0.05-1.5 MPa
- Temperature range: -5℃ to 80℃
- Proof pressure: 2.25 MPa
- Burst pressure: ≥3 MPa
- Weight: 85±2g
- Dimensions: 28mm(L) × 28mm(W) × 28mm(H)
- Port dimensions: 8mm outer diameter per port
- Thread engagement depth: 12mm
- Seal type: Metal-to-metal sealing (no O-ring required)
Precision-machined brass manifold for pneumatic systems requiring multi-directional airflow distribution. Features uniform internal bore design (3mm flow path) to minimize pressure drop across ports. Nickel plating provides corrosion resistance in humid environments. Compatible with ISO 1179-2 standards for connection integrity.
- Pneumatic circuit branching in automation equipment
- Air supply distribution for multi-cylinder systems
- Modular pneumatic training kits
- Packaging machine manifold assemblies
- Compressed air tool manifolds
Installation guidelines:
Apply 3-5Nm torque during assembly. Use PTFE tape or liquid sealant on male threads.
Align ports within 3° angular tolerance. Flush system before installation to prevent
brass shaving contamination.
| Property | Property Value |
|---|---|
| sku | X-APZT8 |
