Airtac X-ASA Adapter - Tube Throttle Type X-ASA10
AirTAC X-ASA10 Throttle Type Tube Fitting Specifications
- Model: X-ASA10
- Type: Throttle-type push-in fitting with flow control
- Thread type: M5×0.8 (male thread)
- Tube compatibility: Ø4mm PU/Nylon tubing
- Max operating pressure: 1.0 MPa
- Pressure regulation range: 0.05-0.7 MPa
- Flow coefficient (Cv): 0.15
- Body material: POM (Polyoxymethylene)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 60℃
- Weight: 8.5g ±0.3g
- Dimensions: 25mm(L) × 16mm(W) × 20mm(H)
- Rotation range: 360° adjustable
- Vibration resistance: 10-55Hz (double amplitude 1.5mm)

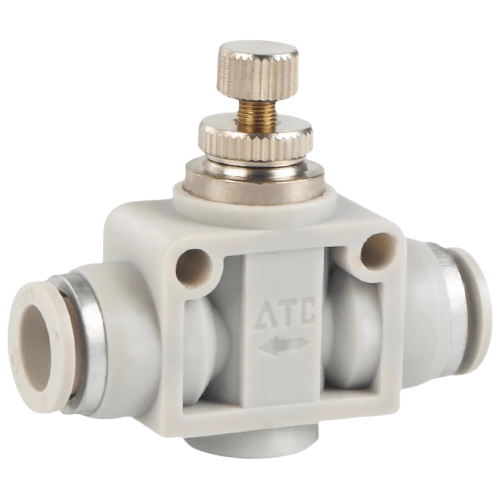

Precision throttle fitting with integrated flow control valve, featuring tool-free tube connection and fine-adjustment screw. The dual-color POM/NBR construction ensures chemical resistance against hydraulic oils and mild solvents. Includes dust-resistant O-ring and positive click retention system.
- Pneumatic cylinder speed regulation
- Vacuum generator flow adjustment
- Air blow system pressure control
- Medical device pneumatic circuits
- 3D printer pneumatic subsystems
Installation note:
For optimal performance, insert tubing until it bottoms out (audible click) and tighten adjustment screw clockwise until desired flow rate is achieved. Avoid overtightening beyond 0.5Nm torque.
Compatibility warning:
Not recommended for use with phosphate ester-based hydraulic fluids or temperatures exceeding 60℃. Always perform flow calibration after installation.
| Property | Property Value |
|---|---|
| sku | X-ASA10 |
