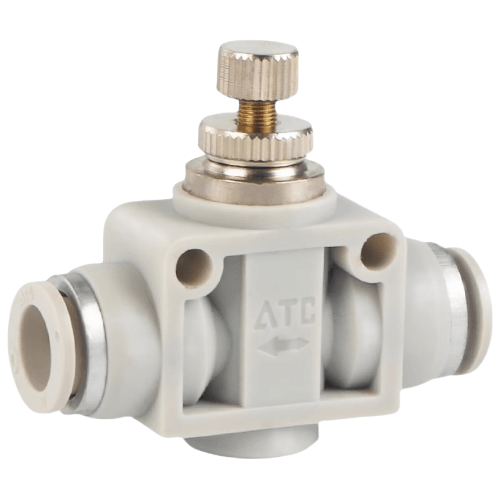

Airtac X-ASA Adapter - Tube Throttle Type X-ASA4
AirTAC X-ASA Throttle-Type Fitting (X-ASA4) Technical Details
- Model: X-ASA4
- Type: Throttle-type push-in fitting with flow control
- Thread specification: M5×0.8 (metric)
- Applicable tubing OD: 4mm (flexible PU/Nylon)
- Flow adjustment range: 0-800 mL/min (calibrated)
- Pressure rating: 0.05-1.0 MPa
- Operating temperature: -20℃ to 60℃
- Body material: POM (polyoxymethylene)
- Seal material: HNBR (hydrogenated nitrile)
- Weight: 12.5g ±0.3g
- Dimensions: 24mm(L) × 16mm(W) × 16mm(H)
- Rotation torque: ≤0.3 N·m (adjustment knob)
- Pressure drop: ≤0.02 MPa @ 0.5 MPa supply
Precision throttling connector featuring dual-stage flow regulation with click-lock adjustment. The integrated O-ring groove ensures vibration-resistant sealing. Optimized for bidirectional flow control with color-coded (blue) adjustment knob for visual flow indication. Includes built-in tube retention clip preventing accidental disconnection.
- Pneumatic cylinder speed regulation in automation lines
- Vacuum system flow balancing
- Medical gas delivery systems
- Semiconductor wafer handling robotics
- Packaging machine air nozzle control
Installation protocol:
For optimal performance, install with flow arrow aligned to direction.
Full counterclockwise rotation opens flow completely before fine-tuning.
Apply silicone-free lubricant on threads during maintenance. Maximum
3 full clockwise turns from open position to prevent seat damage.
| Property | Property Value |
|---|---|
| sku | X-ASA4 |
