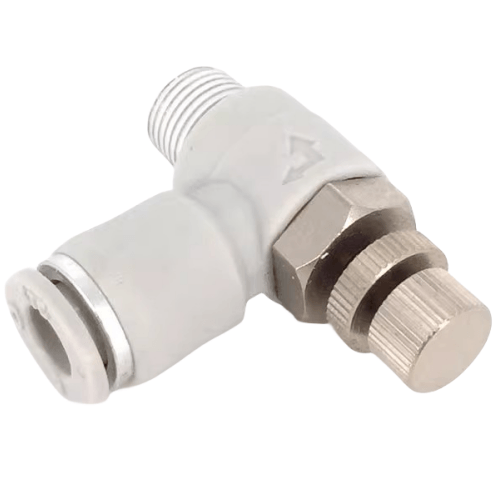

Airtac X-ASL Adapter (L-Type) Restricted Port X-ASL402B
AirTAC X-ASL402B Restricted Port L-Type Fitting Specifications
- Model: X-ASL402B (L-Type Restricted Entry)
- Type: Metric push-in pneumatic fitting (straight thread)
- Body material: Nickel-plated brass (ISO 9001 certified)
- Port size: PT1/8 (BSPP 1/8 equivalent)
- Tube compatibility: Ø4mm (OD) polyurethane/nylon tubing
- Temperature range: -20℃ to 80℃ (continuous operation)
- Pressure range: 0.05-1.5 MPa (7-217 PSI)
- Seal material: NBR (Nitrile) O-ring
- Vibration resistance: ≤20 m/s² (ISO 10816-3 compliant)
- Certifications: RoHS compliant, REACH SVHC-free
- Weight: 82g ±2g (including packaging)
- Dimensions: 40mm(L) × 32mm(W) × 25mm(H)
Precision-engineered L-shaped pneumatic connector featuring anti-disengagement teeth and flow-optimized internal channels. The restricted entry design prevents accidental tube detachment under pressure surges (up to 1.8x rated pressure). Electroplated finish resists salt spray per ASTM B117-19 standards.
- Robotic arm pneumatic tool changers
- CNC machine coolant line connections
- Medical device gas delivery systems
- Food-grade packaging machine air lines
- Electric vehicle battery cooling circuits
Installation protocol:
Insert tubing until audible "click", then pull-test with 50N force.
For high-vibration environments, apply 0.5mL of silicone-based lubricant
(AS-2000 compatible) to collar mechanism annually.
| Property | Property Value |
|---|---|
| sku | X-ASL402B |
