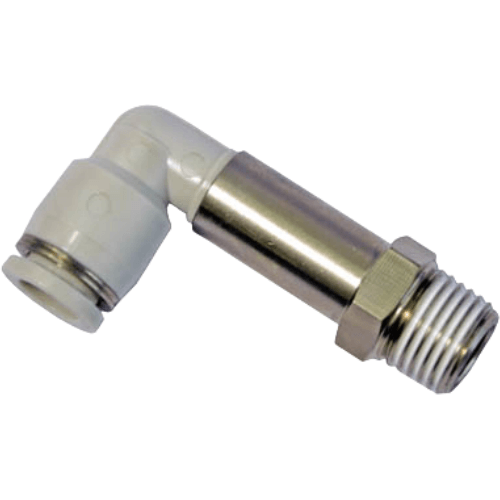

Airtac X-EPLL Connector - L-Type Extended Thread Two-Way X-EPLL1202
$5.60
Regular price
$13.10
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-EPLL1202
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-EPLL1202 L-Type Extended Thread Tee Fitting Specifications
- Model: X-EPLL1202
- Type: L-shaped extended thread tee (female-to-female)
- Thread standard: M5×0.8 (metric fine thread)
- Material: Brass CW617N with nickel-plated surface
- Seal material: NBR (Nitrile) O-ring
- Max working pressure: 1.0 MPa (145 psi)
- Temperature range: -5℃ to 80℃ (23℉ to 176℉)
- Thread engagement length: 8.5±0.5mm
- Surface hardness: ≥HV200
- Corrosion resistance: 96hrs neutral salt spray test passed
- Weight: 18±2g
- Dimensions: 25mm(L) × 15mm(W) × 15mm(H)
Precision-machined L-shaped pneumatic connector with extended threads for secure sealing in confined spaces. Features anti-vibration grooves and wear-resistant plating, designed for high-cycle pneumatic systems. Compatible with PU/Nylon tubing (4mm OD).
Typical Applications:
- Robotic arm pneumatic circuit branching
- CNC machine tool air supply distribution
- Packaging equipment sensor air line connections
- Medical device pneumatic control systems
- Semiconductor manufacturing vacuum line junctions
Installation note:
Apply 1.5-2N·m torque during assembly. Use thread sealant (LOCTITE 542)
for high-vibration environments. Avoid overtightening to prevent port
deformation in aluminum manifolds.
Certifications:
RoHS 2.0 compliant, REACH SVHC tested, ISO 9001:2015 manufacturing
| Property | Property Value |
|---|---|
| sku | X-EPLL1202 |
