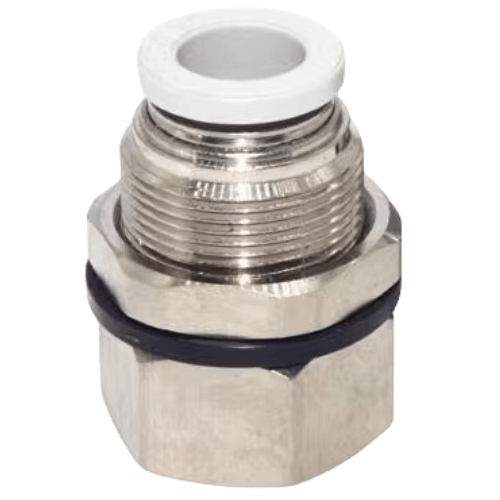

Airtac X-EPMF Connector - Straight Female Panel Mount X-EPMF1003
AirTAC X-EPMF1003 Straight Threaded Bulkhead Fitting Full Specifications
- Model: X-EPMF1003
- Type: Straight-through internal thread bulkhead fitting
- Thread standard: BSPP (Parallel)
- Thread size: PT1/4 (G1/4 equivalent)
- Material: Brass with nickel-plated finish
- Pressure rating: 0.05-1.5 MPa (7-217 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: FKM/Viton O-ring (standard), NBR optional
- Surface treatment: Electroless nickel plating (5-8μm thickness)
- Vibration resistance: ≤10Hz frequency, 1.5mm amplitude
- Weight: 28g ±2g
- Dimensions: 22mm(Ø) × 34mm(L) × 15mm(Hex)
- Installation torque: 12-15 N·m (recommended)
- Protection rating: IP40 (dust protected)
- Compatible tube OD: Ø6mm (1/4")
High-pressure bulkhead fitting featuring dual-seal structure with 360° rotational alignment capability. The through-wall design enables secure panel mounting in confined spaces, with anti-vibration teeth for stable pipe retention. Nickel plating provides corrosion resistance in humid environments (salt spray test passed 96hrs).
- Pneumatic control cabinet panel penetrations
- Hydraulic power unit manifold connections
- CNC machine tool lubrication lines
- Semiconductor vacuum system interfaces
- Robotic arm end-effector air supply
- Food processing equipment (NBR seal version)
Installation protocol:
Use backup wrench on hex flats during assembly. Apply thread sealant only on male threads,
avoiding contact with O-ring surfaces. Torque in 3 progressive steps (30%-70%-100%)
for even compression. Perform pressure test at 1.25x working pressure after installation.
