Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000051T

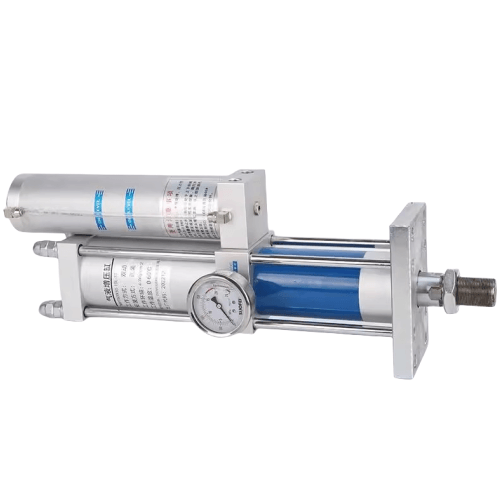

AirTAC X-KAPT6301000051T Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000051T
- Type: 2-stage air-oil booster cylinder
- Bore size: 63mm (air side) / 32mm (oil side)
- Boost ratio: 200:1
- Max. air pressure: 0.8 MPa
- Max. hydraulic pressure: 50 MPa
- Stroke length: 50mm (adjustable via limit screws)
- Operating medium: Clean air (ISO 8573-1) & ISO VG68 hydraulic oil
- Temperature range: -10℃ to 60℃ (operation), -20℃ to 80℃ (storage)
- Port sizes: G1/2 (air inlet), M16x1.5 (hydraulic outlet)
- Weight: 5.8 kg (dry, without oil)
- Dimensions: 230mm(L) × 160mm(W) × 350mm(H)
- Cycle rate: ≤60 cycles/min (dependent on air supply)
- Seal material: Polyurethane/NBR compound
- Rod material: Chrome-plated SCM435 steel
A compact force multiplier combining pneumatic efficiency with hydraulic precision. Features dual-stage pressure amplification and built-in oil reservoir for continuous operation. The self-lubricating design minimizes maintenance, while the modular structure allows easy component replacement. Requires 5-40μm filtered air and periodic oil level checks.
- Sheet metal punching/stamping presses
- Plastic injection molding machine clamping
- Bearing/gear assembly presses
- High-pressure material testing fixtures
- Hydraulic tool power units
- Laminating equipment compression systems
Installation note:
Mount vertically (±5°) with sufficient space for oil reservoir access.
Always install a pressure relief valve downstream. Pre-lubricate system
with 5-10 dry cycles before full-load operation.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000051T |
