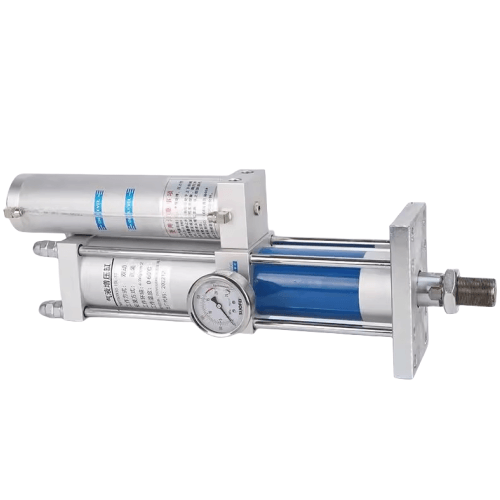

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000151T
AirTAC X-KAPT6301000151T Gas-Liquid Intensifier Cylinder Specifications
- Model: X-KAPT6301000151T
- Type: Gas-liquid combined intensifier (single-acting)
- Intensification ratio: 20:1
- Max air pressure: 0.7-0.8 MPa
- Oil pressure stroke: 10 mm
- Total stroke: 100 mm
- Output force: Up to 15,700 N (at 0.7 MPa air input)
- Port size: G1/2 (air inlet), M16×1.5 (hydraulic port)
- Operating temperature: 0℃ to 60℃
- Seal material: Polyurethane (PU) & Nitrile rubber (NBR)
- Weight: ~12.5 kg
- Dimensions: 300mm(L) × 100mm(Ø) × 420mm(H)
- Hydraulic oil capacity: 0.45 L (ISO VG68 recommended)
- Cycle rate: 30-60 cycles/min (air pressure dependent)
- Mounting orientation: Vertical (±5° tolerance)
A hybrid intensifier combining pneumatic efficiency with hydraulic stability, delivering precise high-force output. Features dual-seal protection and anti-backlash design for repetitive precision tasks. The chrome-plated piston rod and aluminum alloy body ensure corrosion resistance in humid environments.
- Sheet metal punching/stamping operations
- Bearing assembly press-fitting systems
- Plastic injection molding machine clamping
- Battery cell compression testing rigs
- Automotive brake pad manufacturing
Operation notes:
Requires triple-stage filtration (5μm minimum) for air supply.
Perform oil replenishment every 50,000 cycles using specified hydraulic fluid.
Avoid side-load forces exceeding 50N during operation.
Critical:
Always install a pressure relief valve downstream and maintain
oil temperature below 50℃ for optimal seal life. Overstroking beyond
100mm may cause internal component damage.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000151T |
