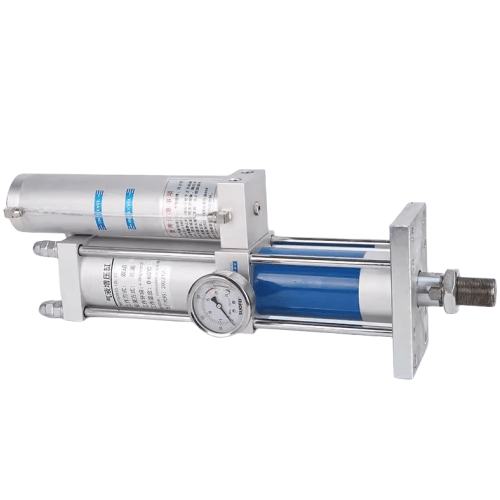

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000153TS
AirTAC X-KAPT6301000153TS Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000153TS
- Type: 2-stage gas-liquid combined intensifier
- Bore sizes: 63mm (air piston) / 40mm (hydraulic piston)
- Stroke: 100mm (air) + 15mm (hydraulic)
- Max. air pressure: 0.7-0.8 MPa
- Boost ratio: 1:25 (typical)
- Max. output force: 78.5 kN (at 0.7 MPa input)
- Working medium: Air (input) / ISO VG68 hydraulic oil
- Operating temperature: 0℃ to 60℃
- Port size: G1/2 (air inlet), M16x1.5 (hydraulic)
- Weight: 12.8 kg ±5%
- Dimensions: 340mm(L) × 160mm(W) × 225mm(H)
- Body material: Aluminum alloy (anodized)
- Rod material: Chrome-plated steel
- Seal type: Polyurethane/NBR compound seals
- Return stroke time: ≤1.2 sec (at 0.6 MPa)
High-efficiency hybrid cylinder combining pneumatic speed with hydraulic force precision. Features integrated oil tank with automatic replenishment system and anti-leakage design. The TS variant includes thermal compensation for consistent performance across temperature variations. Requires 5-40μm filtered compressed air and annual oil maintenance.
- Precision metal forming/stamping operations
- Automotive component riveting (e.g., brake pads)
- Battery cell compression in EV manufacturing
- High-pressure fixture clamping systems
- Plastic injection mold locking mechanisms
Installation guidelines:
Mount vertically with ±5° tolerance. Maintain minimum 50mm clearance
around cylinder body for heat dissipation. Pre-lubricate hydraulic chamber
before first use (ISO VG68 recommended). Avoid side-loading - use guided
mounts for off-center applications.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000153TS |
