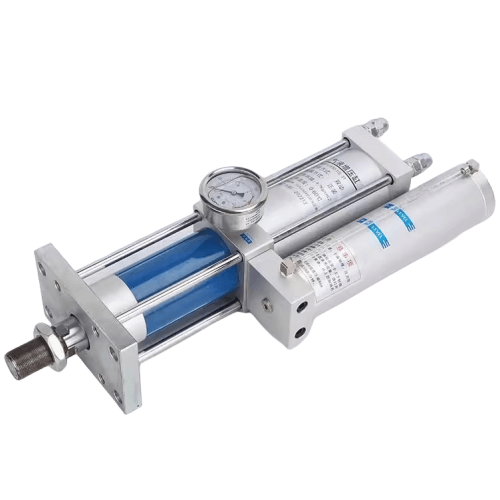

Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005000510T
AirTAC X-KAPTA Series Gas-Liquid Intensifier Cylinder X-KAPTA0005000510T Specifications
- Model: X-KAPTA0005000510T
- Type: Single-acting gas-liquid combined intensifier
- Bore size: 50mm (gas end) / 50mm (oil end)
- Stroke: 100mm (air stroke) + 50mm (oil stroke)
- Max. working pressure: 0.7-0.8 MPa (air input)
- Boost ratio: 1:10 (generates up to 8 MPa hydraulic output)
- Interface size: G1/2 (air port), M16x1.5 (hydraulic port)
- Weight: 5.8kg (including oil filling)
- Dimensions: 220mm(L) × 80mm(W) × 180mm(H)
- Operating temperature: 5℃ to 60℃
- Seal material: Polyurethane (air side), Nitrile rubber (oil side)
- Stroke adjustment: ±2mm via mechanical stopper
- Cycle rate: ≤30 cycles/min (with 2 sec dwell time)
- Hydraulic oil capacity: 350ml (ISO VG68 recommended)
High-efficiency hybrid cylinder combining pneumatic energy with hydraulic precision, featuring dual-stage pressure amplification through gas-liquid conversion. The self-contained oil reservoir eliminates external hydraulic units, with built-in overload protection via mechanical pressure relief valve. Requires clean dry air (40μm filtration) and periodic oil level checks.
- Precision blanking in progressive die stamping machines
- Bearing press-fitting in automotive assembly lines
- Terminal crimping equipment for electrical components
- Glass molding press force amplification systems
- Rubber vulcanization machine pressure boost stages
Installation requirements:
Mount vertically (±5° tolerance) with hydraulic port downward.
Allow minimum 50mm clearance around cylinder body for heat dissipation.
Pre-charge hydraulic oil to 0.3-0.5MPa before initial operation.
