Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005000513T
AirTAC X-KAPTA Series Hydro-Pneumatic Intensifier X-KAPTA0005000513T Technical Details
- Model: X-KAPTA0005000513T
- Type: 2-Stage Oil-Hydraulic Intensifier with Air Return
- Working Pressure (Air): 2-8 bar (29-116 psi)
- Boost Ratio: 5:1 (Standard) / Customizable up to 200:1
- Max. Output Pressure: 400 bar (5,800 psi)
- Stroke Length: 50mm (Adjustable with cushioning)
- Operating Medium: Filtered Air (40μm) + ISO VG68 Hydraulic Oil
- Temperature Range: -10℃ to 60℃ (14℉ to 140℉)
- Port Sizes: G1/4" (Air Inlet), M16x1.5 (Hydraulic Outlet)
- Cycle Rate: 30-100 cycles/min (pressure-dependent)
- Weight: 8.2 kg (18.1 lbs)
- Dimensions: 320mm(L) × 180mm(W) × 165mm(H)
- Body Material: Anodized Aluminum Alloy (Piston Rod: Chrome-plated Steel)
- Seals: HNBR + Polyurethane (Oil-resistant)
- Position Detection: Optional Magnetic Reed Sensor

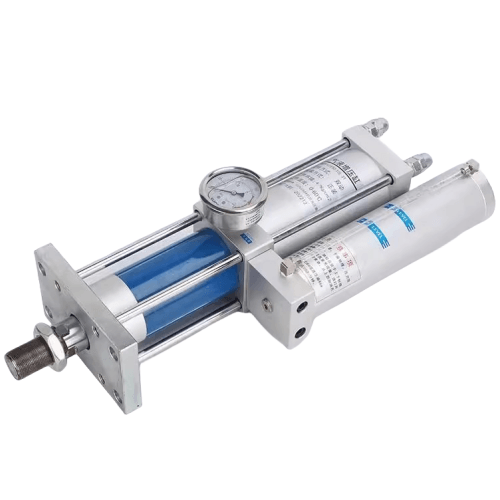

Hybrid actuator combining pneumatic efficiency with hydraulic force amplification, featuring precision-machined tandem cylinders. The dual-sealed oil chamber prevents gas contamination while maintaining stable output pressure. Integrated shock absorbers minimize vibration during high-force applications. Requires separate air supply (4-7 bar recommended) and hydraulic reservoir maintenance every 2,000 operating hours.
- Sheet metal punching/stamping (1-5 ton force requirements)
- Bearing/shaft press-fit assembly lines
- Plastic injection molding machine auxiliary clamping
- Battery cell compression testing systems
- Precision crimping of high-voltage connectors
Installation Protocol:
Mount vertically with ±3° tolerance. Always install pressure relief valve downstream.
Pre-charge hydraulic oil to 80% capacity before first use. Lubricate air section monthly with ISO VG32 oil.
| Property | Property Value |
|---|---|
| sku | X-KAPTA0005000513T |
