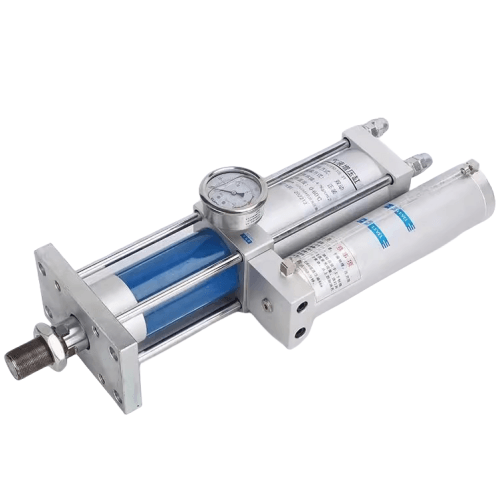

Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005001010T
AirTAC X-KAPTA Pneumatic-Hydraulic Intensifier Cylinder X-KAPTA0005001010T Specifications
- Model: X-KAPTA0005001010T
- Type: 2-stage oil-gas isolated intensifier
- Bore diameter: 50mm (pneumatic) / 10mm (hydraulic)
- Stroke: 100mm (pre-stroke) + 10mm (boost stroke)
- Working pressure: 0.3-0.8 MPa (air input)
- Boost ratio: 25:1 (max output pressure up to 20MPa)
- Operating medium: Clean air (ISO8573-1:2010 Class 3) / ISO VG68 hydraulic oil
- Temperature range: 5℃ to 60℃ (hydraulic side)
- Port size: G1/4 (air inlet) / M14×1.5 (hydraulic outlet)
- Weight: 5.8kg (empty)
- Dimensions: 320mm(L) × 90mm(W) × 90mm(H)
- Cycle rate: ≤60 cycles/min (with 0.5s dwell time)
- Oil capacity: 350ml (standard reservoir)
- Rod end thread: M16×1.5 (male)
- Mounting orientation: Vertical (±15° tolerance)
A hybrid power unit combining pneumatic efficiency with hydraulic precision, featuring dual-pressure control via external air regulators. The oil-gas separation design prevents contamination, with hardened chrome-plated piston rod (HRC 45-50) for wear resistance. Includes built-in shock absorber and adjustable stroke limiter.
- Sheet metal punching/stamping operations
- Bearing and bushing press-fitting systems
- Hydraulic fixture clamping in CNC machining
- Battery cell compression testing equipment
- High-force riveting in aerospace assembly
Installation note:
Maintain oil level between Min/Max marks using sight glass indicator.
Always install downstream air lubricator (ISO VG32 oil mist) and
perform 5-10 no-load cycles after installation. Maximum side load
capacity: 150N at rod end.
