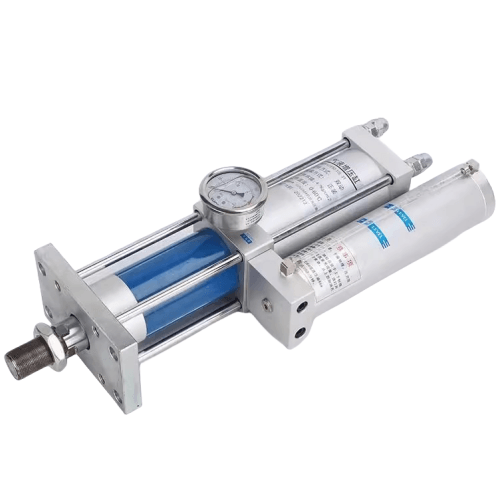

Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005001015T
AirTAC X-KAPTA Pneumatic-Hydraulic Intensifier Cylinder X-KAPTA0005001015T Specifications
- Model: X-KAPTA0005001015T
- Type: 2-stage compound cylinder (air-oil combined)
- Intensification Ratio: 1:5
- Maximum Output Force: 1,500kg
- Air Pressure Range: 0.2-0.8 MPa
- Hydraulic Pressure: Up to 40 MPa
- Fluid Medium: Air (input) / ISO VG68 hydraulic oil
- Temperature Range: -10℃ to 60℃
- Stroke Length: 50mm (air stroke) + 10mm (hydraulic stroke)
- Oil Capacity: 0.25L
- Port Size: G1/4 (air inlet), M14×1.5 (hydraulic port)
- Weight: 8.5kg (with oil)
- Dimensions: Ø50mm × 305mm (total height)
- Seal Materials: NBR + PU composite
- Repeat Accuracy: ±0.02mm
- Protection Rating: IP54
High-precision hybrid actuator combining pneumatic speed with hydraulic force stabilization. Features integrated overload protection and zero-leakage piston design. The chrome-plated cylinder rod and hardened aluminum body ensure durability in high-cycle operations. Requires 5μm filtered air supply and annual oil maintenance.
- Precision metal stamping (connector pins, micro-switch components)
- Battery cell compression in EV manufacturing
- Hydraulic clamping force amplification
- Plastic injection molding gate cutting
- High-pressure riveting of aerospace fasteners
Installation note:
Mount vertically with ±3° tolerance. Pre-lubricate hydraulic chamber before first use.
Allow 20s cool-down between consecutive high-force cycles. Annual oil replacement
mandatory - use ISO VG68 equivalent with anti-wear additives.
| Property | Property Value |
|---|---|
| sku | X-KAPTA0005001015T |
