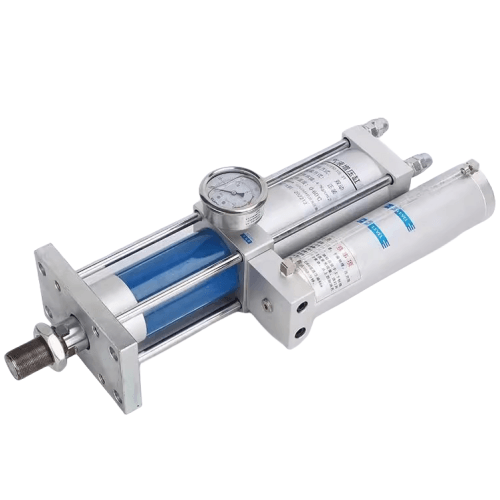

Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005001510T
AirTAC X-KAPTA Series Hydro-Pneumatic Intensifier X-KAPTA0005001510T Specifications
- Full Model Code: X-KAPTA0005001510T
- Intensification Ratio: 50:1 (adjustable via pressure regulation)
- Maximum Output Force: 7,850N (at 0.7MPa air input)
- Stroke Length: 50mm (precisely calibrated ±0.15mm)
- Operating Pressure:
- Air side: 0.5-0.7 MPa
- Hydraulic side: 25-35 MPa (oil pressure)
- Fluid Compatibility:
- Air: ISO 8573-1 Class 3 (40μm filtered)
- Hydraulic oil: ISO VG32 or equivalent
- Temperature Range: -20℃ to 80℃ (anti-condensation design)
- Port Sizes:
- Air inlet: 1/4" NPT (G1/8 optional)
- Hydraulic port: M14×1.5
- Construction Materials:
- Cylinder body: Anodized aluminum alloy (A6063-T5)
- Piston rod: Chrome-plated steel (STS420J2)
- Seals: Hydrogenated nitrile (HNBR)
- Weight: 3.8kg ±5% (dry, without fluid)
- Dimensions: 300mm(L) × 150mm(W) × 150mm(H) (including mounting brackets)
- Cycle Life: ≥500,000 cycles (under rated pressure)
- Protection Rating: IP54 (standard), IP67 optional
This hydro-pneumatic intensifier combines pneumatic efficiency with hydraulic precision, delivering smooth force amplification through its dual-chamber design. The nitrogen-charged accumulator ensures consistent pressure output during long-stroke operations. Features integrated overload protection and a built-in damping system for shock absorption.
- Precision metal forming presses in automotive parts manufacturing
- Bearing press-fitting in motor assembly lines
- Electronic component lamination processes
- High-force crimping in cable termination systems
- Plastic injection molding machine auxiliary clamping
Installation requirements:
Maintain horizontal mounting orientation with vibration-absorbing pads.
Requires monthly hydraulic oil level checks and annual nitrogen pressure
verification (2.0MPa ±0.2). Avoid rapid cycling >30 strokes/minute.
