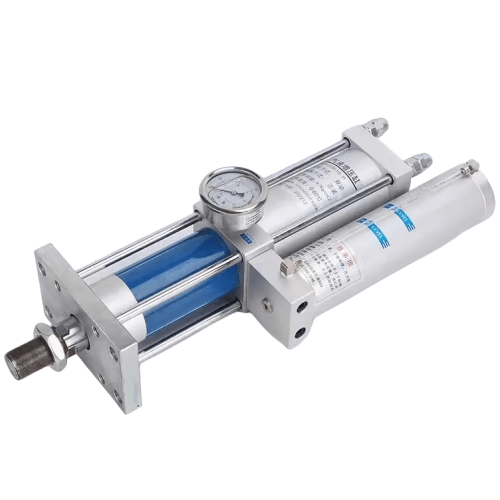

Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005002010T
AirTAC X-KAPTA Pneumatic-Hydraulic Intensifier Cylinder X-KAPTA0005002010T Specifications
- Model: X-KAPTA0005002010T
- Type: Single-acting gas-liquid combined intensifier
- Maximum boost ratio: 2:1 (gas-to-hydraulic conversion)
- Working pressure:
- Air side: 0.3-0.8 MPa
- Hydraulic output: Up to 16 MPa
- Bore diameter: 50mm (air piston)
- Stroke: 200mm (adjustable with built-in stroke limiter)
- Operating medium temperature: -10℃ to 60℃
- Fluid compatibility: ISO VG32 hydraulic oil (pre-filled)
- Port connections:
- Air inlet: G1/4 (BSPP)
- Hydraulic outlet: M16×1.5
- Weight: 8.7 kg (with pre-filled oil)
- Dimensions: 420mm(L) × 125mm(W) × 180mm(H)
- Cycle rate: ≤30 cycles/min (dependent on stroke length)
- Rod material: Chrome-plated steel (hardness HRC 45-50)
- Seal type: Multi-lip polyurethane seals with wear indicators
Hybrid intensifier combining pneumatic efficiency with hydraulic precision, featuring oil-buffered movement for shock-free operation. Integrated pressure maintenance valve prevents oil leakage during standby. Pre-charged nitrogen accumulator (1.2MPa) ensures rapid response. Includes magnetic piston for position feedback compatibility.
- Stamping/punching presses requiring controlled tonnage
- Precision bearing assembly with force monitoring
- Composite material compression molding
- Automotive brake component testing fixtures
- High-pressure fixture clamping in CNC machining
Installation protocol:
Mount vertically ±5° tolerance. Perform 5-10 low-pressure break-in cycles before full operation.
Oil reservoir requires annual replacement under normal use (2000hrs). Avoid side-load exceeding 50N.
| Property | Property Value |
|---|---|
| sku | X-KAPTA0005002010T |
