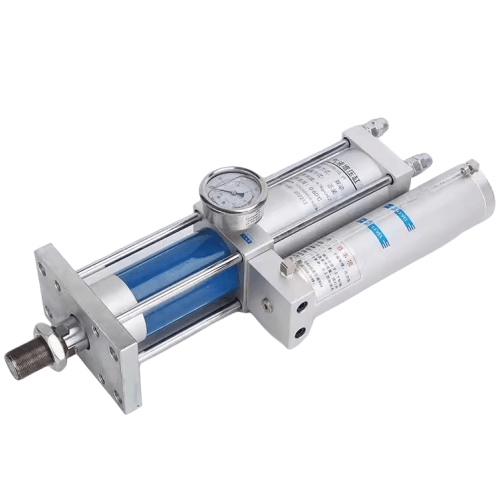

Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005002013TS
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
AirTAC X-KAPTA Pneumatic-Hydraulic Intensifier Cylinder X-KAPTA0005002013TS Technical Details
- Model: X-KAPTA0005002013TS
- Type: 2-stage gas-liquid combined intensifier
- Boost ratio: 1:2.5 (adjustable via pressure regulator)
- Max. air pressure: 8 bar (116 psi)
- Hydraulic output pressure: Up to 200 bar (2900 psi)
- Bore diameter: 50mm (pneumatic) / 32mm (hydraulic)
- Stroke: 200mm (total travel)
- Port size: G1/4 (air inlet), M16x1.5 (hydraulic output)
- Operating temperature: 0℃ to 60℃
- Fluid compatibility: ISO VG32 hydraulic oil
- Cycle rate: 20-40 cycles/min (dependent on load)
- Weight: 8.7 kg (19.2 lbs)
- Dimensions: 480mm(H) × 120mm(W) × 135mm(D)
- Rod end thread: M20x1.5 (standard)
- Seal material: Polyurethane/NBR compound
- Mounting orientation: Vertical (±5° tolerance)
This hybrid intensifier combines pneumatic efficiency with hydraulic precision, delivering smooth high-force output through oil compression. Features automatic oil replenishment system and anti-leakage design with integrated pressure relief valve. The chrome-plated piston rod and hardened cylinder liner ensure extended service life in dirty environments.
- Sheet metal punching/stamping operations
- Plastic injection mold clamping systems
- Bearing press-fitting in automotive assembly
- Bushings and bearings pressing machines
- Electrical contact crimping equipment
- Powder compacting in manufacturing
Operation tip:
Maintain oil level between Min-Max marks using ISO VG32 anti-wear hydraulic fluid.
Allow 30-second warm-up cycle before full load operation. Lubricate air section weekly with
ISO VG32 or equivalent pneumatic oil through air line lubricator.
| Property | Property Value |
|---|---|
| sku | X-KAPTA0005002013TS |
