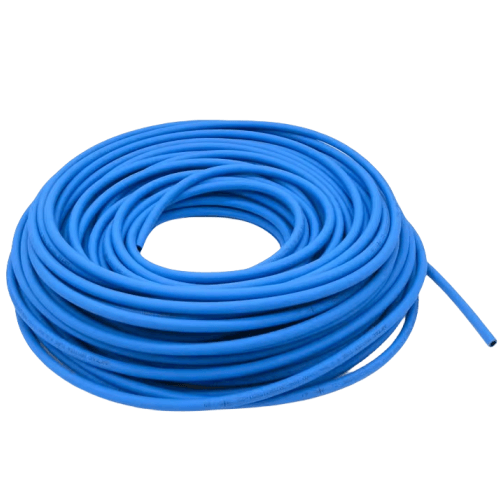

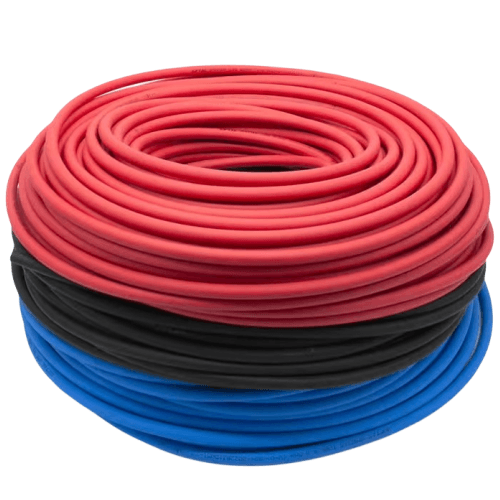

Airtac X-UWS98A PU Flame-Resistant Straight Tube X-UWS98A120080050MY
AirTAC X-UWS98A PU Flame-Retardant Straight Tube X-UWS98A120080050MY
- Full Model Code: X-UWS98A120080050MY
- Material: Polyurethane (PU) with flame-retardant additives
- Flame Rating: UL94 V-0 certified
- Operating Temperature: -40℃ to +90℃ (short-term 120℃)
- Burst Pressure: ≥1.2 MPa
- Working Pressure: 0~0.8 MPa
- Outer Diameter (OD): 8.0 mm ±0.2mm
- Inner Diameter (ID): 5.0 mm ±0.15mm
- Length: 1200 mm (customizable up to 10m)
- Weight: 0.38 kg/m ±5%
- Surface Finish: Semi-transparent with spiral reinforcement
- Color: MY suffix = Mineral Gray (RAL 7030 equivalent)
- Certifications: RoHS, REACH, UL File No.E231533
- Package Dimensions: 1250mm(L) × 100mm(W) × 100mm(H) coiled
Heavy-duty flame-retardant pneumatic tubing with anti-static properties, featuring 3-layer construction: smooth inner bore, aramid fiber reinforcement, and abrasion-resistant outer layer. Maintains flexibility at low temperatures (-40℃) while resisting oil, grease, and hydraulic fluids. Specialized for applications requiring NFPA 701 fire safety compliance.
- Robotic welding cell pneumatic lines
- Foundry equipment air supply systems
- Lithium battery production facilities
- CNC machine tool coolant-resistant air lines
- High-temperature oven control systems
Installation Guidelines:
Minimum bending radius = 4×OD (32mm). Use ISO 8434-1 compliant fittings.
For high-vibration areas, install every 500mm with cushioned clamps.
Avoid direct contact with hot surfaces >120℃ without insulation sleeves.
| Property | Property Value |
|---|---|
| sku | X-UWS98A120080050MY |
