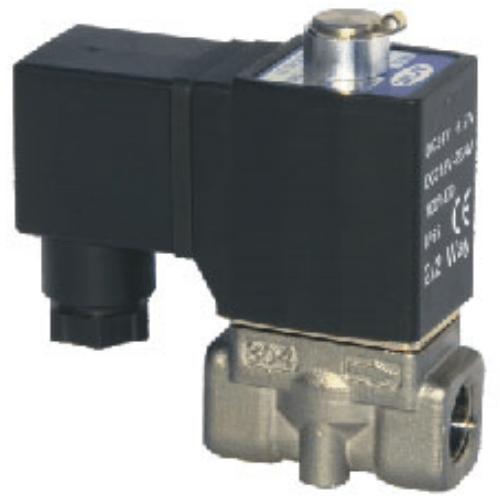

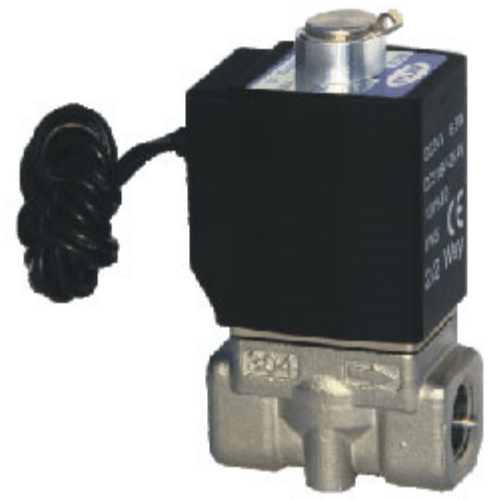

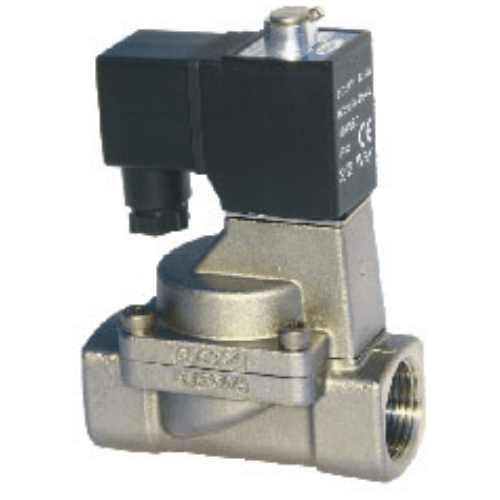

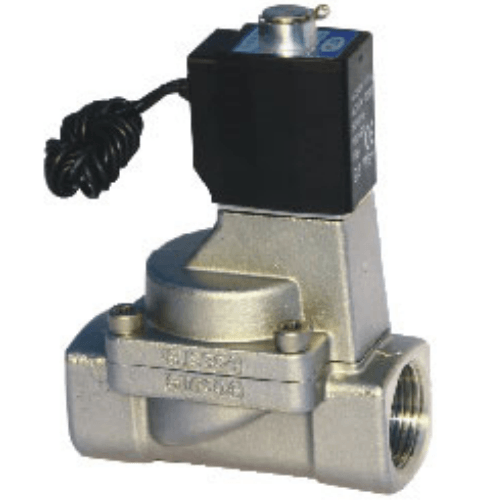

Airtac 2KL Solenoid Valve 2KL05010A
2. Piston pilot normally open 2-way, 2-position solenoid valve with fast response and high flow capacity;
3. Wide pressure range adaptability, offering High Pressure (H) type and Standard type variants;
4. Compact structure with small footprint, lightweight design, and tool-free maintenance;
5. SUS304 stainless steel body construction, H-class heat-resistant coil, and PTFE (Teflon®) seals ensuring compatibility with multiple media, especially optimized for high-temperature water and saturated steam applications;
6. IP65-rated coil protection, available with direct lead wire or DIN connector electrical interfaces.
Category: Fluid Solenoid Valves | Brand: Airtac | Series: 2KL
AirTAC 2KL05010A Solenoid Valve Technical Details
- Model: 2KL05010A (2KL series)
- Valve type: 5/2-way monostable (single solenoid)
- Port configuration: 5 ports (P, A, B, EA, EB), 2 positions
- Port size: G1/8 (ISO228 standard)
- Effective area: 17.5mm² (pilot piston)
- Operating pressure: 0.15–1.0 MPa (21.7–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Coil insulation class: Class F (155℃)
- Max flow rate: 750 L/min (ANR, at 0.5MPa)
- Response time: ≤30ms (energize), ≤50ms (de-energize)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Ambient temperature: -5℃ to 60℃ (with anti-freeze measures below 0℃)
- Weight: 225g ±5g (excluding accessories)
- Dimensions: 54mm(L) × 34mm(W) × 78mm(H) (manual override protrusion excluded)
- Protection rating: IP67 (dust tight and protected against temporary immersion)
- Mounting orientation: Any (horizontal/vertical)
High-flow directional control valve with manual override capability, featuring dual pressure balance structure for stable operation under fluctuating loads. The pilot-operated design enables low power consumption (2.2W typical) while handling large flow paths. Integrated surge protection diodes prevent voltage spikes in DC models.
- Pneumatic cylinder sequencing in assembly lines
- Rotary actuator control for material handling systems
- Clamping/unclamping mechanisms in CNC machinery
- Vacuum generator switching in packaging equipment
- Process valve control in semiconductor manufacturing
Operational advisory:
Install upstream 5μm filter regulator. Lubricated air (ISO VG32) recommended for
optimal seal life. Allow minimum 85% duty cycle with 2-minute rest period
per hour during continuous operation.
- Mounting bracket kit (P/N: 2KL-MB1)
- Silencer for exhaust ports (P/N: AS-01-08)
- Manual override lock (P/N: MOL-2KL-S)
| Property | Property Value |
|---|---|
| sku | 2KL05010A |
| Port Size | PT3/8 |
| Flow Aperture | <5mm> |
| Coil Voltage | AC220V |
