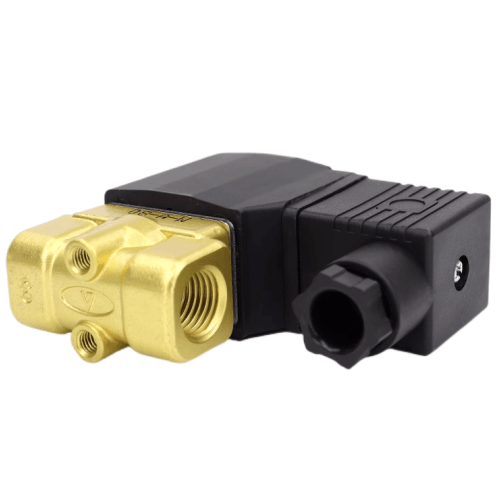

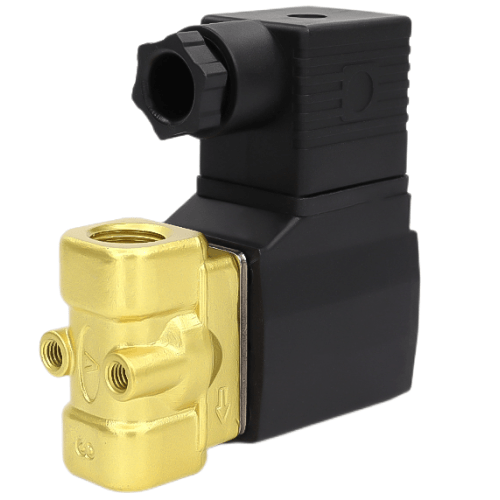

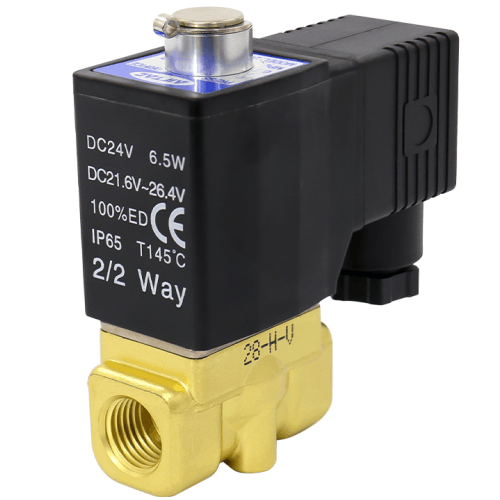

Airtac 2KWX Fluid Solenoid Valve 2KWX03008CI
2. Wide pressure range adaptability – options include Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) configurations;
3. Compact structure with minimized footprint, lightweight design, and tool-free assembly/disassembly capability;
4. Brass valve body construction with Class B thermal-rated coil. Standard FPM (Fluorocarbon Rubber) seals ensure compatibility with multiple media. Custom seal materials available upon consultation with our technical department;
5. IP65-rated coil protection, available in direct lead wire or DIN connector wiring configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWX Series
AirTAC 2KWX03008CI Fluid Solenoid Valve Technical Details
- Model: 2KWX03008CI
- Type: 3-position, 5-way (double solenoid, spring center)
- Port size: 1/4" NPT (G1/4 optional)
- Operating pressure: 0.15–1.0 MPa (21.7–145 PSI)
- Voltage options: DC24V (±10%), AC110V/220V (±10% 50/60Hz)
- Flow capacity: 750 Nl/min (Cv=1.2)
- Response time: ≤20ms (at 0.5MPa)
- Weight: 1.25 kg (2.76 lbs)
- Dimensions: 118mm(L) × 45mm(W) × 71mm(H)
- Seal material: Fluororubber (FKM) standard (NBR optional)
- Temperature range: -5℃ to 80℃ (with FKM seals)
- Power consumption: 3.5W (AC), 4.2W (DC)
- Protection rating: IP67 (dustproof & waterproof)
- Port thread depth: 12mm (minimum engagement)
High-flow proportional control valve with triple position functionality, featuring manual override and LED status indicator. The aluminum alloy body with hard anodized treatment ensures corrosion resistance in humid environments. Designed for precise directional control in hydraulic/pneumatic hybrid systems.
- Plastic injection molding machine clamping units
- Automated assembly line positioning systems
- Textile machinery tension control mechanisms
- Food processing pneumatic actuators (FDA-compliant seals available)
- Electric vehicle battery cooling systems
Installation requirements:
Requires 25μm filtration with auto-drain function. For vertical mounting,
maintain 20° maximum deviation from upright position. Lubricate with ISO VG32
grade oil if using non-lubricated air systems.
| Property | Property Value |
|---|---|
| sku | 2KWX03008CI |
| Port Size | PT1/4 |
| Flow Aperture | 1.5mm |
| Coil Voltage | AC 110V |
