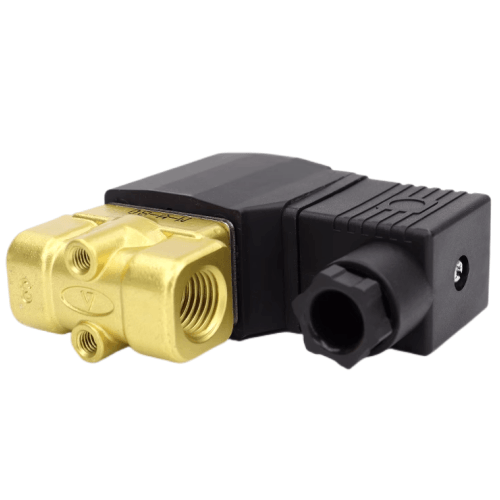

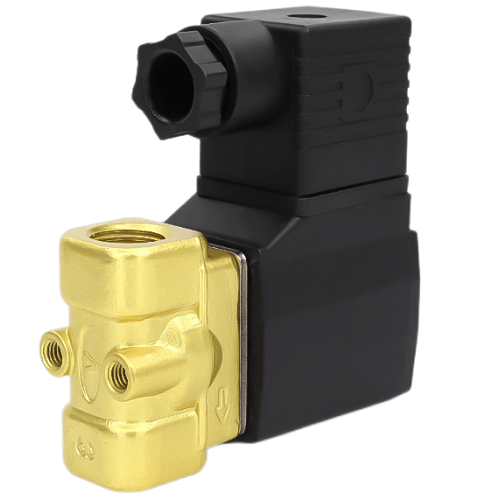

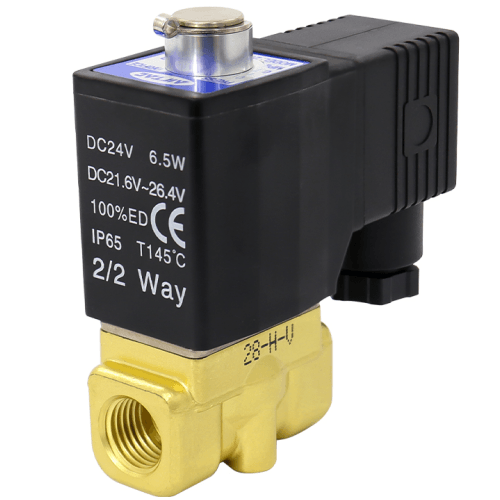

Airtac 2KWX Fluid Solenoid Valve 2KWX05015FI
$73.27
Regular price
$80.77
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
2KWX05015FI
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Direct-acting normally open 2-port 2-position solenoid valve with rapid switching and high response sensitivity;
2. Wide pressure range adaptability – options include Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) configurations;
3. Compact structure with minimized footprint, lightweight design, and tool-free assembly/disassembly capability;
4. Brass valve body construction with Class B thermal-rated coil. Standard FPM (Fluorocarbon Rubber) seals ensure compatibility with multiple media. Custom seal materials available upon consultation with our technical department;
5. IP65-rated coil protection, available in direct lead wire or DIN connector wiring configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWX Series
Installation protocol:
Mount with inlet port (P) facing downward to prevent debris accumulation.
Use thread sealant on male connections (PTFE tape not recommended).
Allow 15mm clearance below coil for heat dissipation.
2. Wide pressure range adaptability – options include Ultra-High Pressure (X), High Pressure (H), Standard, and Large Flow (L) configurations;
3. Compact structure with minimized footprint, lightweight design, and tool-free assembly/disassembly capability;
4. Brass valve body construction with Class B thermal-rated coil. Standard FPM (Fluorocarbon Rubber) seals ensure compatibility with multiple media. Custom seal materials available upon consultation with our technical department;
5. IP65-rated coil protection, available in direct lead wire or DIN connector wiring configurations.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2KWX Series
AirTAC 2KWX05015FI Fluid Solenoid Valve Specifications
- Model: 2KWX05015FI
- Type: 2-position, 3-way direct-acting (fluid control)
- Port size: G1/8 (ISO228 standard)
- Thread connection: BSPP (parallel threads)
- Fluid compatibility: Water, light oils, air (non-corrosive media)
- Operating pressure: 0.02–1.0 MPa
- Max working pressure: 1.6 MPa
- Voltage options: DC12V (±10%), DC24V (±10%)
- Power consumption: 10W (initial)/4.5W (hold)
- Response time: ≤30ms (actuation)
- Seal material: FKM (Viton® equivalent)
- Temperature range: -5℃ to 80℃ (fluid temp)
- Ambient temperature: -5℃ to 50℃
- Protection rating: IP67 (dust/water resistant)
- Housing material: PBT resin with glass fiber
- Weight: 280g ±5g
- Dimensions: 64mm(L) × 40mm(W) × 75mm(H)
High-flow fluid control valve with dual voltage DC operation, featuring corrosion-resistant seals for aggressive media. Optimized flow path design achieves Cv=0.6 for efficient liquid control. Manual override included for system debugging. Requires 50μm filtration upstream.
Industrial Applications:
- Coolant circulation systems in CNC machines
- Precision irrigation valve clusters
- Beverage dispensing equipment
- Industrial dishwasher fluid routing
- Water treatment chemical dosing
Installation protocol:
Mount with inlet port (P) facing downward to prevent debris accumulation.
Use thread sealant on male connections (PTFE tape not recommended).
Allow 15mm clearance below coil for heat dissipation.
| Property | Property Value |
|---|---|
| sku | 2KWX05015FI |
| Port Size | PT 1/2 |
| Flow Aperture | <3mm> |
| Coil Voltage | DC12V |
