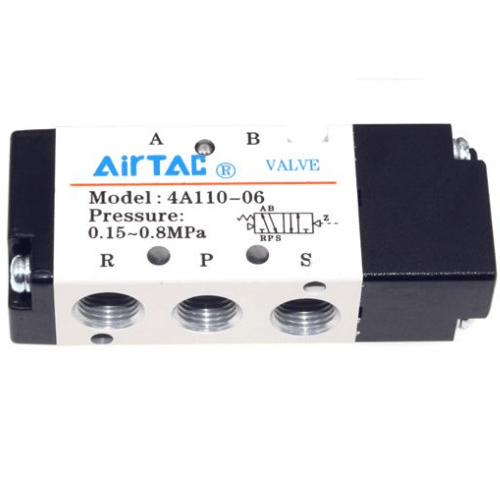

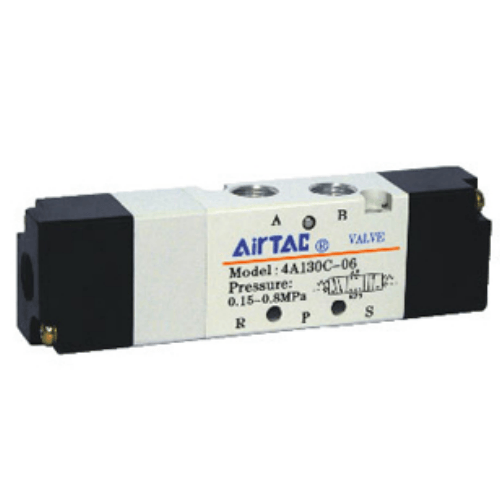

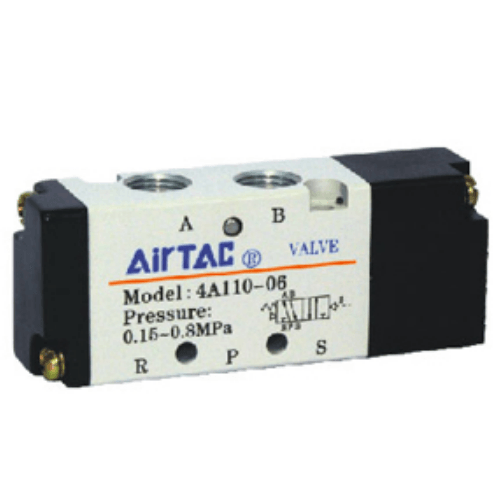

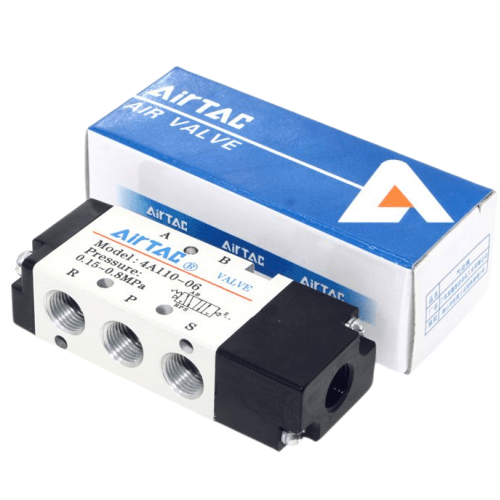

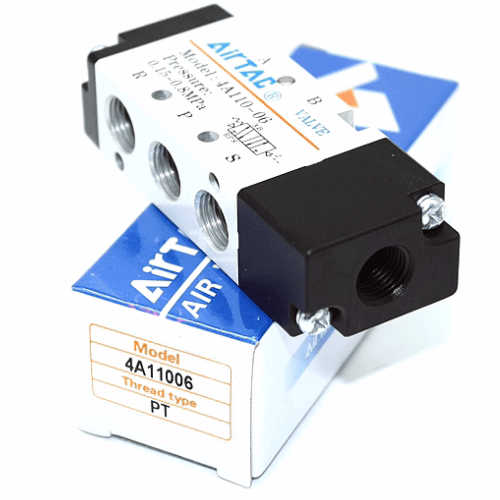

Airtac 4A100 Pneumatic Control Valve 4A130E06
2. Three-position pneumatic valve offers three selectable mid-position functions;
3. Dual-head 2-position configuration features memory retention capability;
4. Specialized machining processes for internal bores achieve low frictional resistance, low activation pressure, and extended service life;
5. Oil-free lubrication required;
6. Compatible with manifold base integration for space-efficient installation;
Category: Pneumatic Control Valves | Brand: AirTAC | Series: 4A100
AirTAC 4A100 Series 4A130E06 Pneumatic Control Valve Specifications
- Model: 4A130E06 (4A100 Series)
- Valve type: 5/2-way pneumatic pilot operated
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure range: 0.15–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Actuation method: Air pilot (dual pressure control)
- Response time: ≤50 ms (at 0.5 MPa)
- Seal material: Heat-resistant NBR (+90℃ peak)
- Temperature range: -10℃ to 80℃
- Body material: Reinforced PBT resin
- Weight: 280g ±5%
- Dimensions: 56mm(L) × 38mm(W) × 72mm(H)
- Port thread depth: 10mm (minimum engagement)
- Mounting options: Panel mount or sub-base installation
- Protection rating: IP67 (dust/water resistant)
High-flow pneumatic directional control valve with dual-pressure pilot control, featuring rapid response and enhanced durability for continuous operation. The corrosion-resistant PBT body withstands chemical exposure in harsh environments. Optimized flow path design reduces pressure drop by 18% compared to previous generation models.
- Automated assembly line clamping systems
- Plastic injection molding machine actuators
- Food processing pneumatic circuits (NSF compliant)
- High-cycle packaging machinery
- Semiconductor handling equipment
Installation guidelines:
Maintain minimum 15mm clearance around exhaust ports for proper ventilation.
Use anti-vibration washers when mounting on moving equipment. Lubricate with ISO VG32
grade air tool oil if operating below -5℃. Maximum allowable lateral load on ports: 5N.
| Property | Property Value |
|---|---|
| sku | 4A130E06 |
| Position | 5-port 3-position |
| Port Size | PT1/8 |
