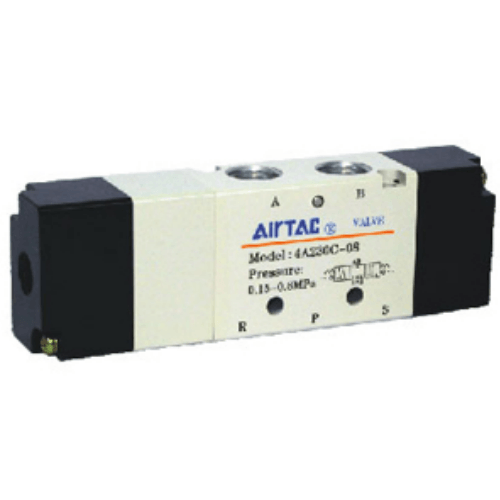

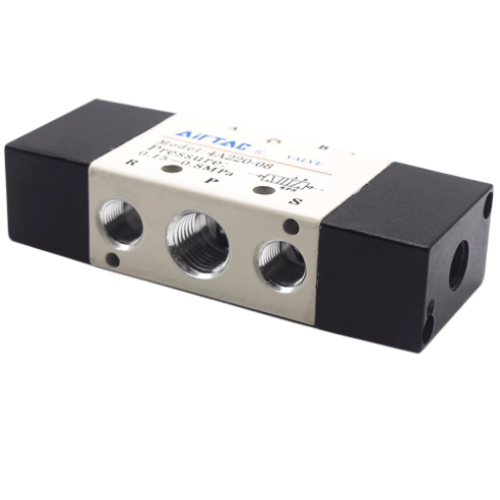

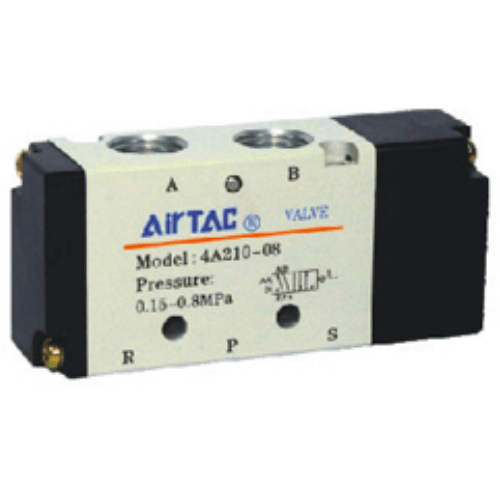

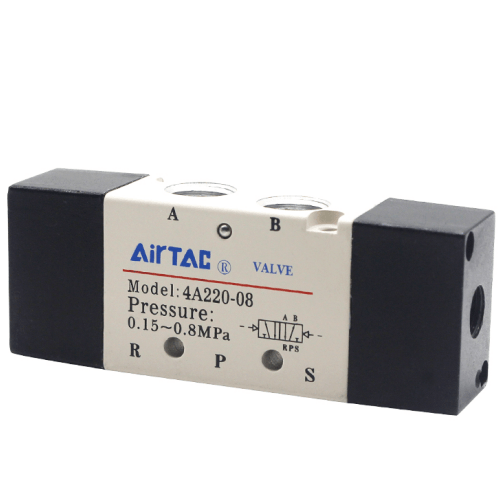

Airtac 4A200 Pneumatic Valve 4A22008
2、3-position pneumatic valves offer three selectable center position configurations;
3、Double pneumatic pilot 2-position valves feature memory retention capability;
4、Precision-honed internal bore minimizes friction resistance, enables low pilot pressure activation, and guarantees extended service life;
5、Maintenance-free operation requiring no lubrication;
6、Manifold base compatibility for space-efficient system integration;
Category: Pneumatic Valves , Brand: AIRTAC , Series: 4A200
AirTAC 4A200 Series Solenoid Valve (Model 4A22008) Specifications
- Model: 4A22008 (4A200 Series)
- Type: 5/2-way single solenoid spring return
- Port configuration: 5 ports (P, A, B, R, S) / 2 positions
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 2.5W (DC), 3.5VA (AC)
- Response time: ≤15ms (excitation), ≤20ms (de-excitation)
- Flow coefficient (Cv): 1.8
- Seal material: NBR (standard), optional FKM for high temp
- Temperature range: -5℃ to 60℃ (NBR), -5℃ to 120℃ (FKM)
- Weight: 320g ±5% (excluding connector)
- Dimensions: 55mm(L) × 42mm(W) × 75mm(H)
- Protection rating: IP65 (coil protection)
- Manual override: Built-in emergency switch
- Expected service life: ≥10 million cycles
High-flow 5/2-way pneumatic directional valve with rapid response characteristics, featuring dual-pressure operation capability and dust/water resistance. The aluminum alloy body with hard anodized treatment ensures durability in harsh environments. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.2.4 air quality.
- Automated assembly line cylinder control
- Plastic injection molding machine ejectors
- Textile machinery pneumatic actuators
- Automotive brake system testing rigs
- Food processing pneumatic circuits (FKM seal version)
Installation guidelines:
Mount in vibration-free position with 15mm minimum clearance for heat dissipation.
Use M5x12 mounting screws (torque ≤0.5Nm). Lubricate with ISO VG32 turbine oil
if operating below -5℃. Perform monthly manual cycling for maintenance.
Critical note:
Do NOT apply reverse polarity to DC models. Maintain ambient humidity
below 85% RH to prevent coil degradation. Replace seals every 3 years
under continuous operation.
| Property | Property Value |
|---|---|
| sku | 4A22008 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
