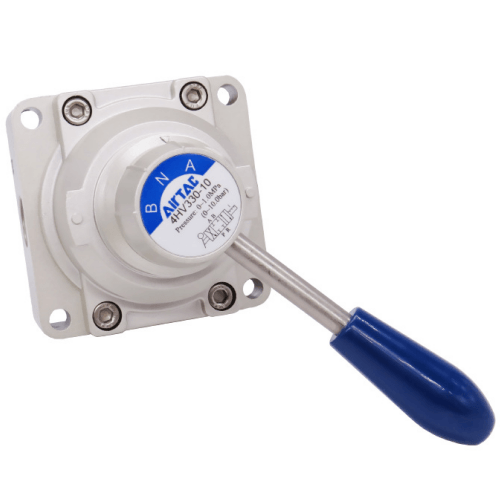

Airtac 4HV Manual Rotary Valve 4HV21006S
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV21006S Manual Rotary Valve Technical Details
- Model: 4HV21006S (Industrial Series)
- Type: 3-position manual rotary valve with detent mechanism
- Port configuration: 5 ports (P, A, B, R1, R2)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 850 L/min (ANR)
- Valve body material: Anodized aluminum alloy
- Spindle material: Stainless steel SUS304
- Seal material: HNBR (Heat-resistant nitrile)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 320g ±5g
- Dimensions: 60mm(L) × 34mm(W) × 42mm(H)
- Mounting: Direct panel mounting with M4 screws
- Actuation torque: ≤0.5 N·m
- Leakage rate: <30 mL/min at 0.5 MPa
Robust manual override valve featuring positive center position locking and bi-directional exhaust control. The chrome-plated spindle with triple O-ring seals ensures smooth rotation and zero leakage. Designed for systems requiring manual intervention without disconnecting pneumatic lines.
- Production line emergency stop systems
- Hydraulic press safety override controls
- Automated assembly jig calibration
- Plastic injection molding machine maintenance
- Pneumatic circuit debugging & troubleshooting
Operation guidance:
Rotate knob 90° clockwise for Position A (P→A, B→R2), counter-clockwise for Position B (P→B, A→R1).
Center position blocks all ports. Apply silicone-free grease annually to spindle.
| Property | Property Value |
|---|---|
| sku | 4HV21006S |
| Position | 4-way 2-position |
| Port Size | PT1/8 |
