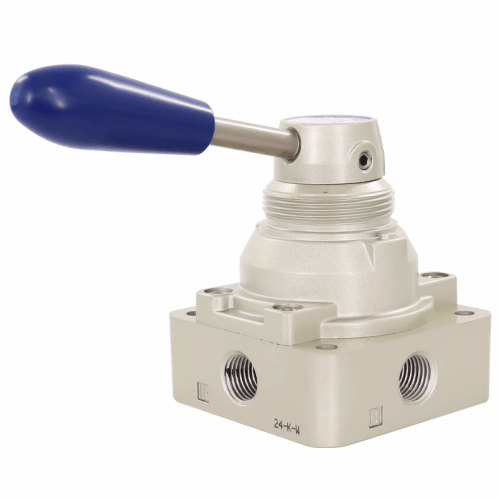

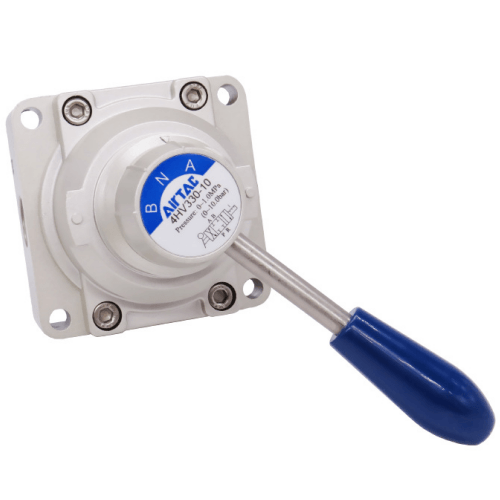

Airtac 4HV Manual Rotary Valve 4HV21006SL
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV21006SL Manual Rotary Valve Specifications
- Model: 4HV21006SL
- Type: 4-port 3-position manual rotary valve (lockable)
- Port configuration: P, A, B, R (G1/8 thread)
- Port size: G1/8 (ISO228-1 standard)
- Operating pressure: 0.1–1.0 MPa
- Max flow rate: 650 L/min (ANR)
- Operating temperature: -5℃ to 60℃ (no freeze)
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: Anodized aluminum alloy
- Handle torque: ≤1.5 N·m
- Mounting style: Panel mount (16mm cutout)
- Weight: 215g ±5g
- Dimensions: 50mm(W) × 50mm(H) × 48mm(D)
- IP rating: IP42 (splash resistant)
- Position indicator: Colored sector window (green/red)
Robust manual override valve with positive center position locking, designed for precise pneumatic circuit control in harsh environments. Features anti-vibration detents and wear-resistant seals for >500,000 cycle durability. The ergonomic knob allows gloved operation with tactile feedback.
- Emergency override in automated production lines
- Jig/fixture pressure regulation in CNC machining
- Manual mode switching for material handling systems
- Training simulators for pneumatic education
- Maintenance bypass in hydraulic hybrid systems
Installation note:
Apply thread sealant only on male ports (PTFE tape prohibited).
Lubricate rotating shaft monthly with ISO VG32 turbine oil.
Maximum 2Nm tightening torque for port fittings.
