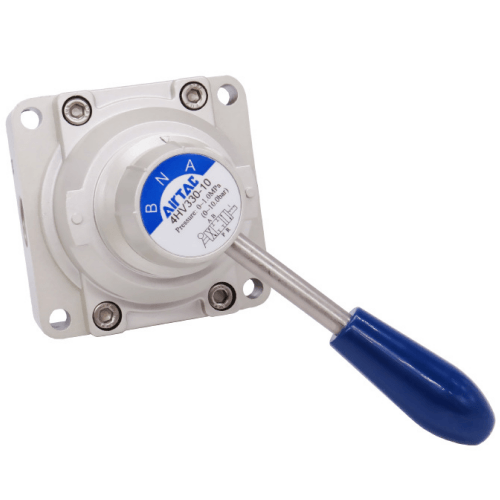

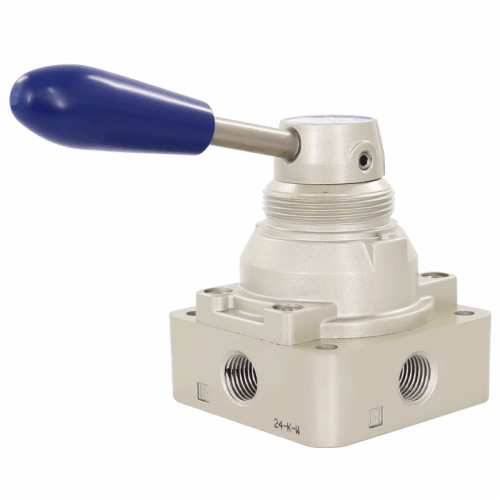

Airtac 4HV Manual Rotary Valve 4HV23006S
2、Large effective flow area ensures minimal pressure loss;
3、Dual installation options (panel mount with included nuts or bottom mount) for flexible configuration.
Category: Manual Rotary Valves | Brand: Airtac | Series: 4HV
AirTAC 4HV23006S Manual Rotary Valve Technical Details
- Model: 4HV23006S
- Type: 3-position manual rotary valve (Lockable)
- Port configuration: 4 ports, 3 positions
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Max flow rate: 750 L/min (ANR)
- Body material: Anodized aluminum alloy
- Seal material: HNBR rubber (-20℃ to 150℃)
- Operating temperature: -20℃ to 80℃ (non-freezing)
- Weight: 215g ±5g
- Dimensions: 62mm(L) × 34mm(W) × 48mm(H)
- Mounting: Panel mount with M5 screws
- Rotation torque: ≤0.5 N·m
- Durability: 500,000 cycles minimum
Manual override valve with tactile position feedback, featuring a corrosion-resistant aluminum body and precision-machined brass rotor. The 45° rotation mechanism provides positive detent positioning (A/B/Neutral) with dust-resistant seals. Includes dual O-ring shaft sealing and anti-vibration lock nut.
- Emergency override in automated production lines
- Pneumatic system maintenance bypass
- Mobile equipment manual control (construction machinery)
- Process testing & troubleshooting stations
- Educational pneumatic training rigs
Operation guidance:
Apply firm clockwise rotation until audible click confirms position engagement.
Lubricate shaft quarterly with ISO VG32 hydraulic oil in high-cycle applications.
