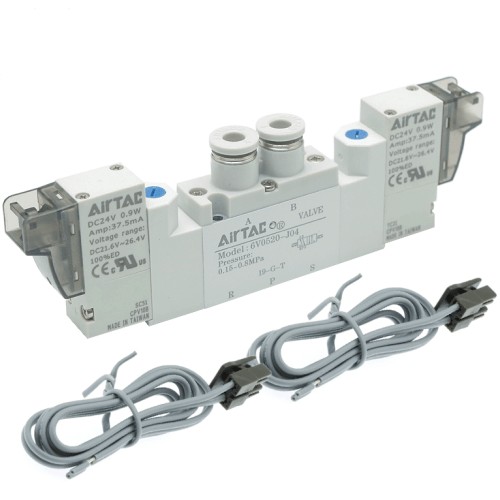

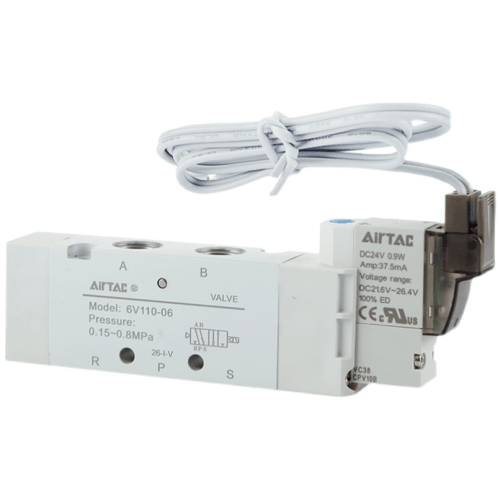

Airtac 6V Solenoid Valve 6V0530CM5F200
2、Internal venting structure collects pilot air for centralized exhaust through R/S ports;
3、High-pressure die-cast aluminum alloy body features precision-machined inner bore for optimized flow path geometry and enhanced flow capacity;

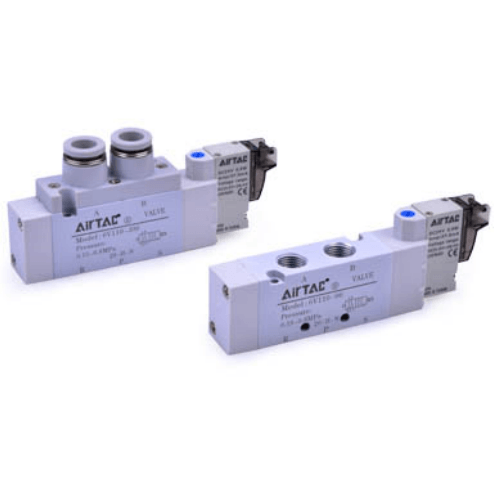

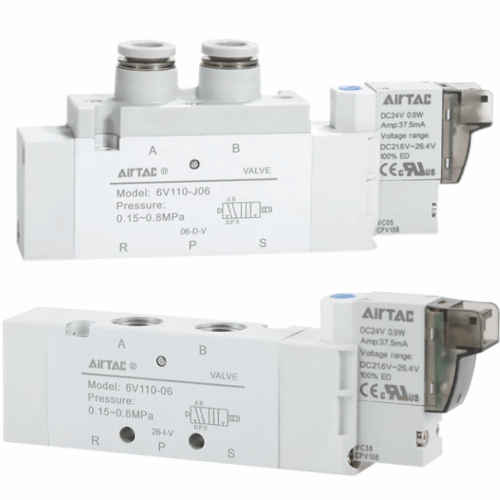

4、Available in threaded and quick-insertion port types, compatible with base-mounted valve manifolds for space-efficient installation.
Category: Solenoid Valves | Brand: AIRTC | Series: 6V
AirTAC 6V0530CM5F200 Solenoid Valve Technical Details
- Model Code: 6V0530CM5F200
- Valve Type: 5-port/3-position (5/3-way) center closed configuration
- Operation Type: Double solenoid pilot-operated
- Port Thread: G1/8 (ISO228 standard)
- Effective Area: 53mm² (critical for force calculation)
- Operating Pressure: 0.1~1.0 MPa (14.5~145 PSI)
- Voltage Variations:
- DC: 12V (±10%), 24V (±10%)
- AC: 110V (±10% 50/60Hz), 220V (±10% 50/60Hz)
- Power Consumption: 1.6W (DC), 4.5VA (AC)
- Flow Capacity: CV 1.8 (Kv 1.55) @7bar
- Response Time: ≤15ms (excitation), ≤20ms (de-excitation)
- Seal Material: NBR (Nitrile) standard, optional Viton for high-temp
- Ambient Temperature: -5℃ to 80℃ (with NBR seals)
- Fluid Temperature: 0℃ to 60℃ (media-dependent)
- Protection Class: IP67 (dustproof & temporary immersion)
- Weight: 320g ±5% (including connectors)
- Dimensions: 58mm(L) × 34mm(W) × 78mm(H) (body only)
- Port Spacing: 18mm between adjacent ports (ISO modular design)
Industrial-grade 5/3-way valve featuring a rugged aluminum alloy body with anodized finish for corrosion resistance. The center-blocked design allows precise cylinder control in mid-position. Integrated LED status indicator and manual override facilitate maintenance. Requires 5μm filtered compressed air with max 5% relative oil content.
- Multi-position cylinder control in automated assembly lines
- Pneumatic clamping systems requiring intermediate stops
- Textile machinery with position-holding requirements
- Test bench pressure regulation setups
- Safety circuits with dual-solenoid redundancy
Mounting Guidelines:
Install with manifold base (e.g., 10-series) for optimal performance.
Maintain ≥15mm clearance below valve for heat dissipation.
Use thread sealant on port connections (avoid Teflon tape debris).
Perform monthly manual cycling if used infrequently.
- Manifold: ADP-10H (horizontal) or ADP-10V (vertical)
- Connector: CM-06 series plug with IP67 rating
- Recommended tubing: PU6×4mm for ≤0.7MPa systems
| Property | Property Value |
|---|---|
| sku | 6V0530CM5F200 |
| Port Size | M5 |
| Standard Voltage | DC12V |
