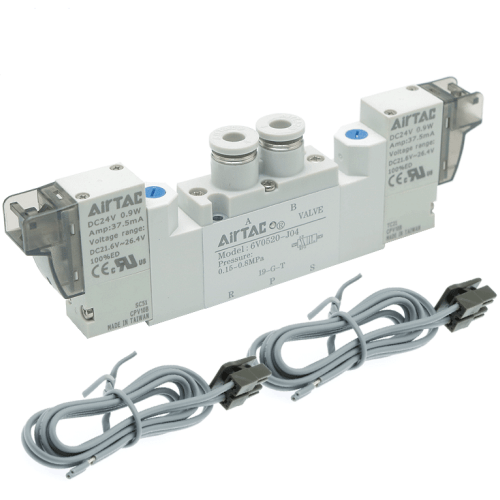

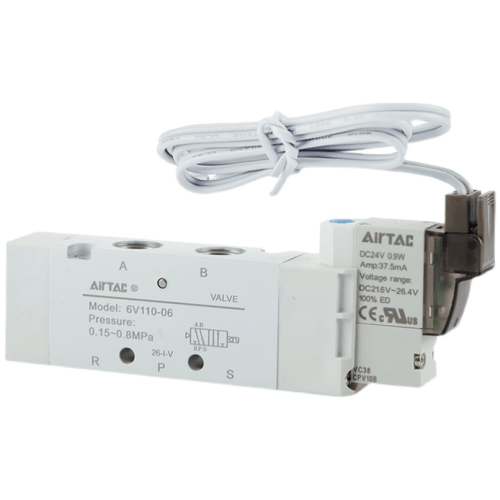

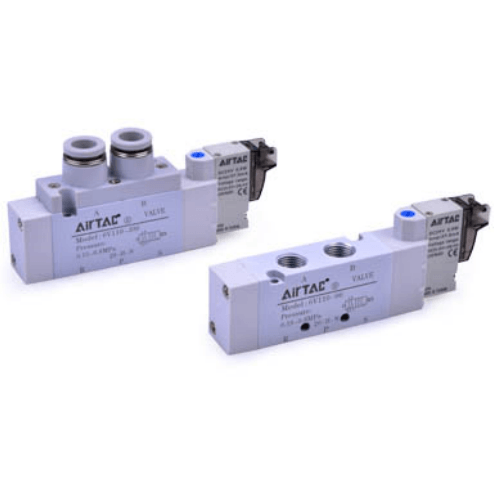

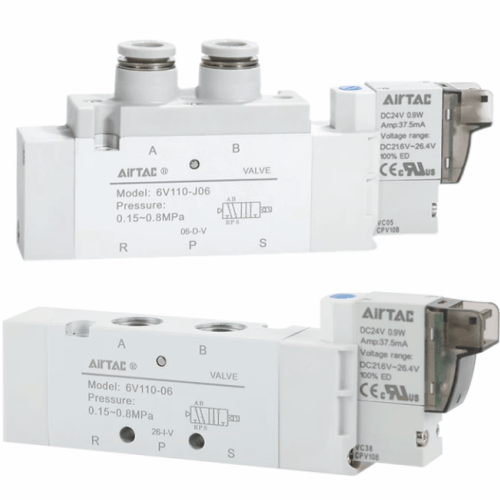

Airtac 6V Solenoid Valve 6V11006F200
2、Internal venting structure collects pilot air for centralized exhaust through R/S ports;
3、High-pressure die-cast aluminum alloy body features precision-machined inner bore for optimized flow path geometry and enhanced flow capacity;
4、Available in threaded and quick-insertion port types, compatible with base-mounted valve manifolds for space-efficient installation.
Category: Solenoid Valves | Brand: AIRTC | Series: 6V
AirTAC 6V11006F200 Solenoid Valve Technical Details
- Full model designation: 6V11006F200 (6V1 series)
- Valve type: 5-port 2-position (5/2-way) double solenoid pilot operated
- Port thread: PT1/4 (G1/4 optional)
- Effective bore diameter: Φ4.0mm
- Operating pressure range: 0.15–1.0 MPa (21–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Weight: 480g ±3% (including coil)
- Body dimensions: 56mm(W) × 63mm(H) × 135mm(L)
- Seal materials: Main seals NBR, optional FKM/Viton for high temp
- Ambient temperature: -5℃ to 80℃ (non-freezing)
- Power consumption: 2.8W (DC), 4.5VA (AC)
- Response time: ≤15ms (open), ≤20ms (close) at 0.5MPa
- Max cycling rate: 5Hz (300 cycles/minute)
- Flow capacity: CV 0.44 / 320 NL/min (ANR)
- Protection class: IP67 (coil), IP40 (valve body)
- Manual override: Optional paddle-type emergency actuator
High-flow proportional solenoid valve with dual coil redundancy, featuring brass body construction with anodized aluminum pilot section. Designed for precision directional control in pneumatic systems requiring rapid cycling. Includes LED status indicator and surge protection circuitry. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Automated production line cylinder sequencing
- Plastic injection molding machine clamp control
- Robotic arm end-effector tooling
- CNC machine tool chuck operation
- Pharmaceutical blister packaging systems
Installation guidelines:
Mount horizontally with manifold brackets (torque ≤1.5Nm). Allow 20mm clearance
for heat dissipation. Use shock absorbers in high-vibration environments.
Recommended service interval: 50 million cycles or 3 years.
Critical note:
Do NOT use with oxidizing gases. Always install downstream pressure regulator.
Minimum holding pressure 0.15MPa required for stable operation.
| Property | Property Value |
|---|---|
| sku | 6V11006F200 |
| Port Size | PT1/8 |
| Standard Voltage | DC12V |
