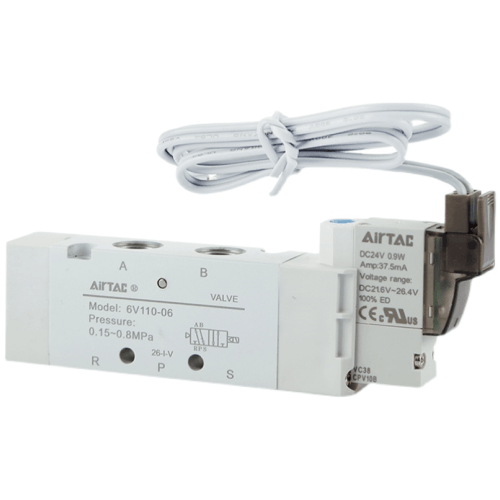

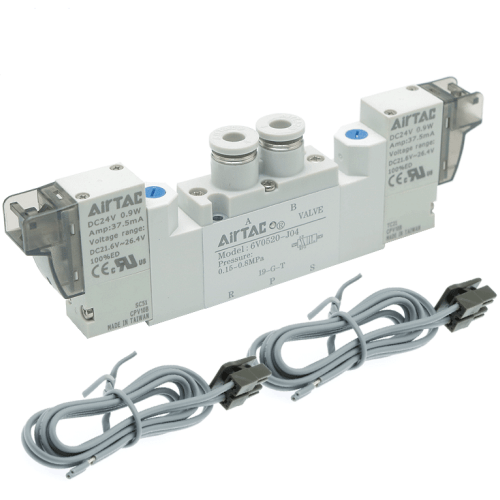

Airtac 6V Solenoid Valve 6V230CJ10F050
2、Internal venting structure collects pilot air for centralized exhaust through R/S ports;
3、High-pressure die-cast aluminum alloy body features precision-machined inner bore for optimized flow path geometry and enhanced flow capacity;

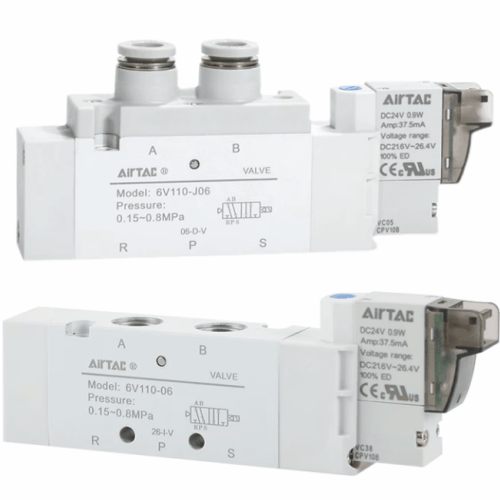

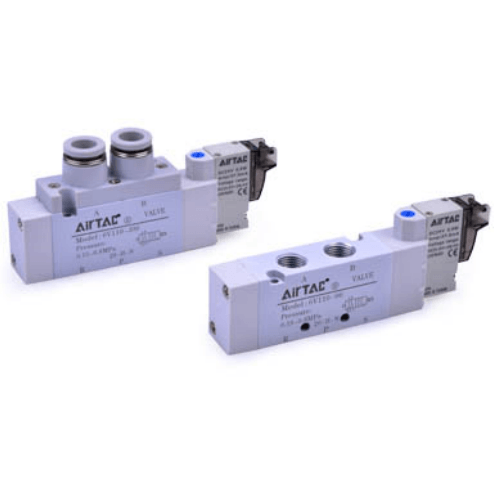

4、Available in threaded and quick-insertion port types, compatible with base-mounted valve manifolds for space-efficient installation.
Category: Solenoid Valves | Brand: AIRTC | Series: 6V
AirTAC 6V230CJ10F050 Solenoid Valve Technical Details
- Full model designation: 6V230CJ10F050
- Valve type: 5/2-way monostable (single solenoid)
- Port configuration: G1/4 (ISO standard thread)
- Operating pressure range: 0.15–1.0 MPa (21.7–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Manual override: Built-in emergency manual operator
- Flow capacity: 750 L/min (Cv=1.3 at 0.5MPa)
- Response time: ≤25ms (at rated voltage)
- Seal material: Heat-resistant NBR (Nitrile) with PTFE piston rings
- Ambient temperature: -5℃ to 60℃ (operating fluid temp: 0-50℃)
- Durability: ≥10 million cycles (per IEC testing standards)
- Weight: 480g ±5% (including coil)
- Dimensions: 54mm(W) × 46mm(H) × 125mm(L)
- Port positions: 5 ports (P: pressure, A/B: actuators, R/S: exhausts)
- Protection class: IP67 (dustproof and waterproof immersion up to 1m)
- Coil insulation: Class F (155℃)
High-flow directional control valve with industrial-grade construction, featuring corrosion-resistant aluminum body and brass core components. The 6V230 series incorporates a pilot-assisted operation mechanism for low power consumption (3.5W max) and rapid response. Requires 5μm filtered compressed air with lubrication (ISO 8573-1 class 3.4.3). Compatible with ISO 15407-1 standard mounting interfaces.
- Pneumatic cylinder sequencing in assembly lines
- Textile machinery clamp controls
- Plastic injection molding machine actuators
- Automated material handling systems
- CNC machine tool clamping devices
Installation guidelines:
Mount in vibration-free environment using M5 mounting screws (torque ≤1.2N·m).
Maintain minimum 20mm clearance around exhaust ports. Use shock absorbers in
high-cycle applications (>2Hz operation). Lubricate quarterly with ISO VG32
turbine oil if using non-lubricated air systems.
| Property | Property Value |
|---|---|
| sku | 6V230CJ10F050 |
| Port Size | PT3/8 |
| Standard Voltage | DC12V |
