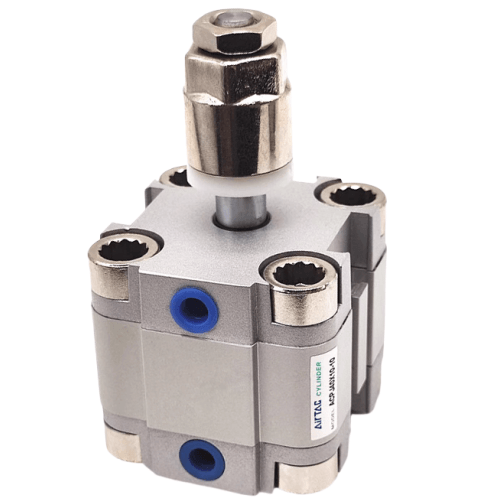

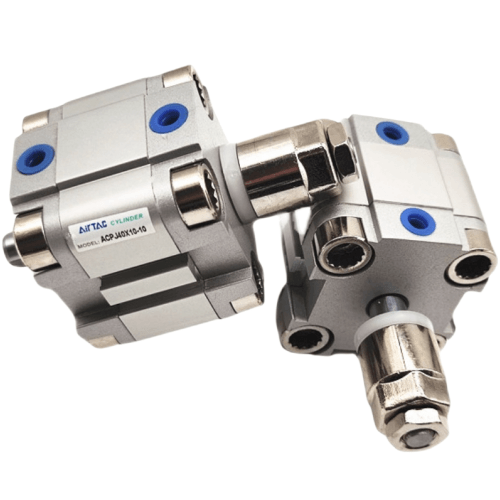

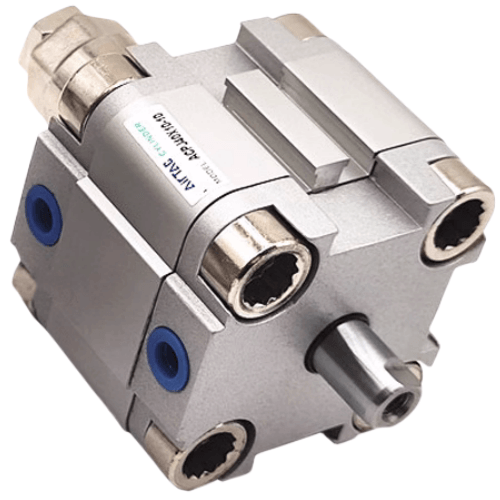

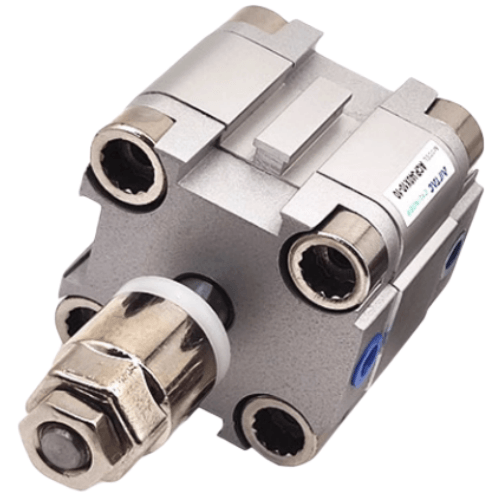

Airtac ACPJ Adjustable Compact Cylinder ACPJ12X110-30S
2. Front/rear end caps feature threaded connections for enhanced strength and maintenance convenience;
3. Barrel undergoes precision machining followed by hard anodizing treatment for superior wear resistance and durability;
4. Specialized bidirectional sealing structure in piston design ensures compact dimensions with integrated oil reservoir functionality;
5. Space-optimized compact configuration minimizes installation footprint;
6. Perimeter magnetic switch grooves enable flexible sensor mounting options;
7. Multiple standardized mounting accessories available for system integration;
Category: Adjustable Cylinders | Brand: AirTAC | Series: ACPJ
AirTAC ACPJ Adjustable Compact Cylinder ACPJ12X110-30S Specifications
- Model: ACPJ12X110-30S
- Type: Adjustable stroke, single-acting spring return
- Bore size: 12mm
- Stroke: 110mm (adjustable ±2mm)
- Mounting style: Compact body with front flange
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Rubber buffer with stroke adjustment screw
- Port size: M5x0.8 (dual ports)
- Seal material: Heat-resistant NBR
- Piston rod material: Stainless steel with hard chrome plating
- Weight: 0.65kg (without accessories)
- Dimensions: 130mm(L) × 30mm(W) × 30mm(H)
- Rod thread: M6x1.0 external thread
- Max speed: 500mm/s
- Protection rating: IP54 (standard)
Ultra-slim pneumatic cylinder featuring patented stroke adjustment mechanism for precise positioning. The anodized aluminum body with corrosion-resistant coating ensures durability in humid environments. Includes built-in auto-locking nuts for tool-free stroke calibration. Requires 40μm filtered compressed air with 1-3 drops of ISO VG32 oil per m³.
- Precision clamping in CNC tool changers
- Micro-positioning in semiconductor handling robots
- Actuation in medical device assembly lines
- Packaging machine ejector systems
- Space-constrained automation cabinets
Installation tip: Use C-shaped mounting brackets (sold separately) for vibration-prone applications.
Lubricate adjustment screw monthly with silicone grease. Max lateral load: 15N.
| Property | Property Value |
|---|---|
| sku | ACPJ12X110-30S |
| Adjustable Stroke | 30mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | Internal Thread |
| Magnet | S-Magnetic |
| Bore Diameter | 12mm |
| Stroke | 110mm |
