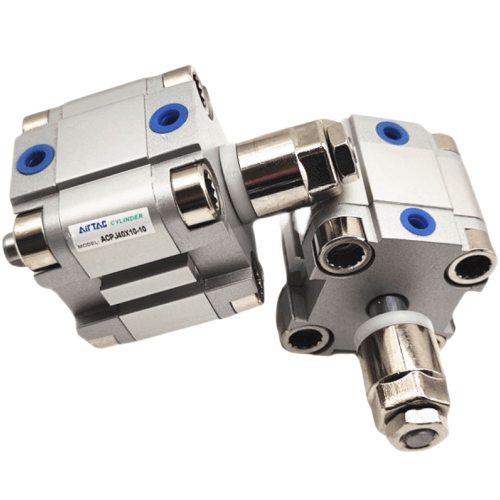

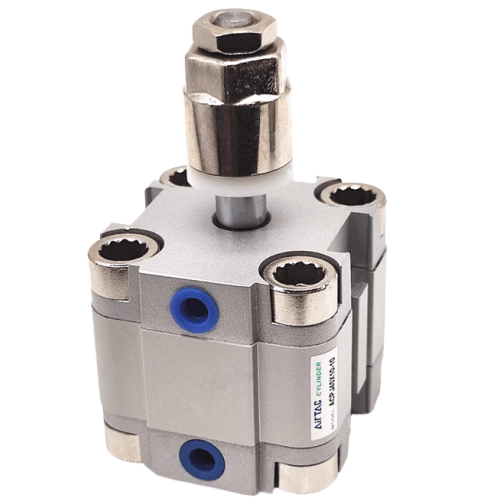

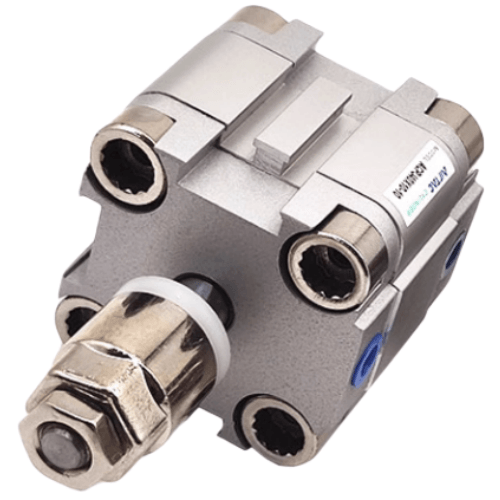

Airtac ACPJ Adjustable Compact Cylinder ACPJ12X125-40S
2. Front/rear end caps feature threaded connections for enhanced strength and maintenance convenience;
3. Barrel undergoes precision machining followed by hard anodizing treatment for superior wear resistance and durability;
4. Specialized bidirectional sealing structure in piston design ensures compact dimensions with integrated oil reservoir functionality;
5. Space-optimized compact configuration minimizes installation footprint;
6. Perimeter magnetic switch grooves enable flexible sensor mounting options;
7. Multiple standardized mounting accessories available for system integration;
Category: Adjustable Cylinders | Brand: AirTAC | Series: ACPJ
AirTAC ACPJ12X125-40S Adjustable Compact Cylinder Specifications
- Model: ACPJ12X125-40S
- Type: Double-acting adjustable compact cylinder
- Bore size: 12mm
- Stroke: 125mm (±0.5mm tolerance)
- Operating pressure: 0.15–0.8 MPa
- Port thread: M5×0.8 (G1/8 optional)
- Cushioning: Adjustable pneumatic cushion (both ends)
- Piston speed: 50–800 mm/s
- Ambient temperature: -20℃ to 80℃
- Mounting types: Basic type (MF1), front flange (MF2), rear double flange (MF3)
- Rod material: Stainless steel (SUS304)
- Seal material: NBR (nitrile rubber)
- Weight: 0.45kg (without accessories)
- Dimensions: 160mm(L) × 34mm(W) × 34mm(H)
- Protection rating: IP65 (dust-tight & water jet resistant)
A space-saving pneumatic actuator with precision cushion adjustment, featuring an integrated mounting groove design that reduces 30% installation space compared to standard cylinders. The dual chrome-plated piston rod enhances corrosion resistance in humid environments. Requires ISO 8573-1:2010 [4:4:3] class compressed air.
- PCB handling robots in electronics manufacturing
- Precision clamping devices for CNC tooling
- Pharmaceutical blister packaging machines
- Automated lens polishing systems
- High-cycle sorting mechanisms (up to 5 ops/sec)
Installation note:
For optimal performance, maintain 0.5–1mm alignment tolerance during mounting.
Lubricate with ISO VG32 hydraulic oil before initial use. Avoid side-load forces exceeding 2N·m.
| Property | Property Value |
|---|---|
| sku | ACPJ12X125-40S |
| Adjustable Stroke | <40mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | Internal Thread |
| Magnet | S-Magnetic |
| Bore Diameter | 12mm |
| Stroke | 125mm |
