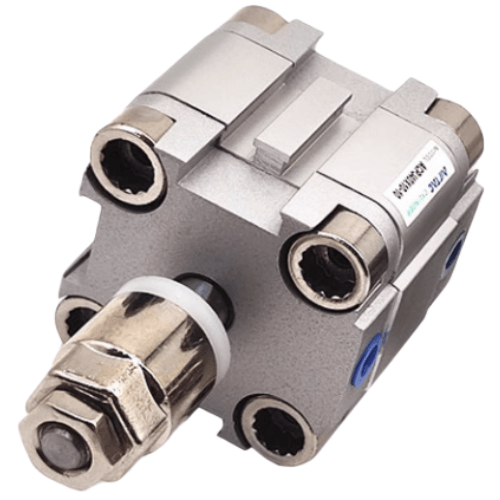

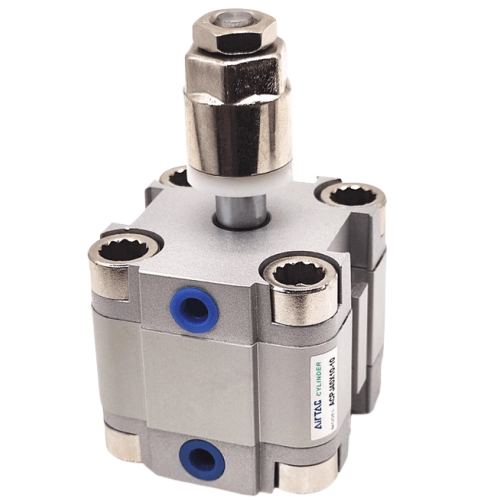

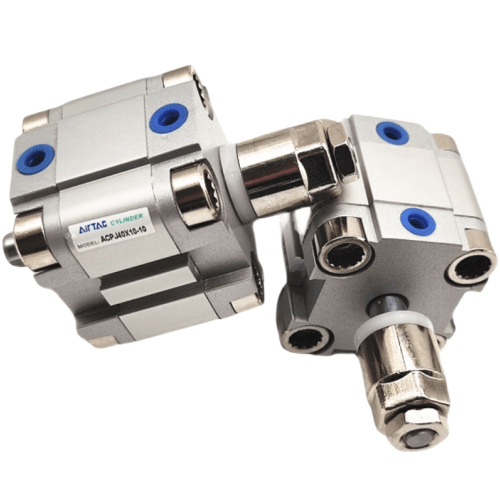

Airtac ACPJ Adjustable Compact Cylinder ACPJ12X75-75SB
2. Front/rear end caps feature threaded connections for enhanced strength and maintenance convenience;
3. Barrel undergoes precision machining followed by hard anodizing treatment for superior wear resistance and durability;
4. Specialized bidirectional sealing structure in piston design ensures compact dimensions with integrated oil reservoir functionality;
5. Space-optimized compact configuration minimizes installation footprint;
6. Perimeter magnetic switch grooves enable flexible sensor mounting options;
7. Multiple standardized mounting accessories available for system integration;
Category: Adjustable Cylinders | Brand: AirTAC | Series: ACPJ
AirTAC ACPJ12X75-75SB Adjustable Compact Cylinder Specifications
- Model: ACPJ12X75-75SB
- Type: Double-acting adjustable stroke cylinder
- Bore size: 12mm
- Stroke: 75mm
- Adjustment range: 0-75mm (stepless stroke adjustment)
- Operating pressure: 0.15–0.8 MPa
- Temperature range: -20℃ to 80℃
- Cushion type: Adjustable air cushion
- Mounting style: Standard (optional foot/mounting brackets available)
- Port size: M5x0.8 (G1/8 adaptor optional)
- Seal material: NBR (Nitrile rubber)
- Piston rod material: Stainless steel (SUS304)
- Weight: 0.45kg (with standard accessories)
- Dimensions: 75mm (stroke length) × 42mm (body width) × 42mm (height)
- Max speed: 500mm/s
- Lubrication: Pre-lubricated (relubrication interval: 6 months)
A space-saving pneumatic cylinder with unique stroke adjustment mechanism featuring dual locking nuts for precise positioning. The chrome-plated piston rod and anodized aluminum body ensure corrosion resistance in humid environments. Integrated shock absorption reduces end-impact noise by 30% compared to standard cylinders.
- Precision workpiece clamping in CNC jigs
- Variable height positioning in conveyor systems
- Material feeding mechanisms with adjustable stroke
- Semiconductor handling equipment
- Automated packaging line actuators
Installation tip:
Use thread-locking compound on adjustment nuts during installation.
Maintain 0.5-1mm clearance between cylinder end and mechanical stops.
For vertical mounting, install with piston rod facing downward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | ACPJ12X75-75SB |
| Adjustable Stroke | 75mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | External Thread |
| Magnet | S-Magnetic |
| Bore Diameter | 12mm |
| Stroke | 75mm |
