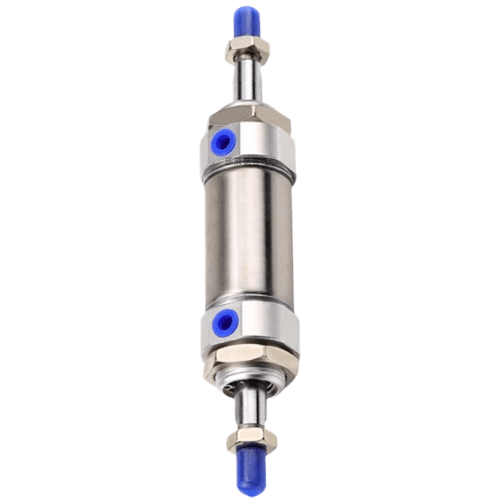

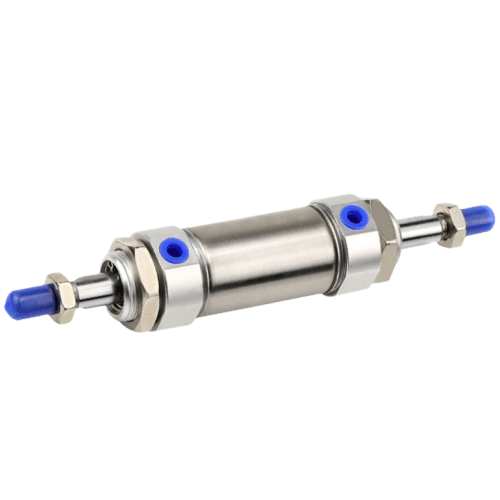

Airtac AirTAC MID Series Double Rod Mini Cylinder MID12X10S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID12X10S Double Rod Mini Cylinder Technical Details
- Model: MID12X10S
- Type: Double-acting, dual rod compact cylinder
- Bore size: 12mm
- Stroke: 10mm (±1mm tolerance)
- Operating pressure: 0.15-0.8 MPa
- Port thread: M5×0.8 (standard) / PT1/8 optional
- Piston rod material: SUS304 stainless steel
- Cylinder tube: Anodized aluminum alloy
- Seals: NBR (standard) / Fluorine rubber optional
- Cushioning: Adjustable rubber buffer (both ends)
- Temperature range: -20℃ to 80℃
- Weight: 0.18kg (without accessories)
- Dimensions: 72mm(L) × 24mm(W) × 24mm(H)
- Mounting style: Basic type (axial mounting holes)
- Lubrication: Pre-lubricated (DOP anti-wear oil)
- Max theoretical thrust: 9.1kgf @0.5MPa
Ultra-compact dual-rod pneumatic cylinder designed for space-constrained automation systems. Features symmetrical force output and precise linear motion control through twin chrome-plated piston rods. The hardened aluminum construction ensures corrosion resistance while maintaining lightweight properties (40% lighter than standard cylinders). Requires 5μm filtered compressed air with ISO VG32 equivalent lubrication.
- Precision alignment mechanisms in SMT equipment
- Bilateral clamping devices for micro-component assembly
- Valve actuation in portable medical analyzers
- Positioning stages for optical inspection systems
- Counterbalance systems in robotic end-effectors
| Property | Property Value |
|---|---|
| sku | MID12X10S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | 12mm |
| Stroke | <10mm> |
