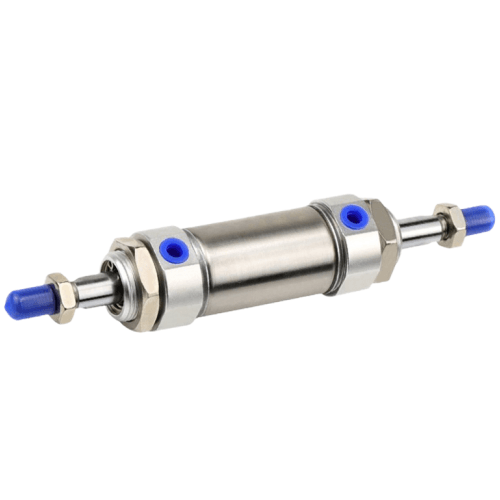

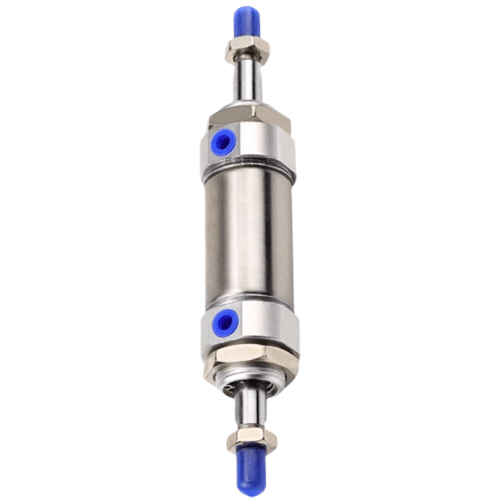

Airtac AirTAC MID Series Double Rod Mini Cylinder MID12X150S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID12X150S Double Rod Mini Cylinder Technical Details
- Model: MID12X150S
- Series: MID dual-rod compact series
- Bore size: Ø12mm (±0.1mm tolerance)
- Stroke: 150mm (customizable 10-300mm)
- Operating pressure: 0.1-0.9 MPa
- Cushioning: Adjustable elastic buffer (both ends)
- Mounting types: MF1/MF2 front flange, MB1 side mount, MBS foot mounting
- Port size: M5x0.8 (standard), G1/8 optional
- Rod material: SUS304 stainless steel (chrome-plated optional)
- Cylinder tube: Hard anodized aluminum alloy
- Seals: NBR standard (FKM/Viton available for high temp)
- Temperature range: -20℃ to +80℃
- Max speed: 500-800 mm/s (with cushioning)
- Repeat accuracy: ±0.1mm
- Weight: 0.3kg (excluding accessories)
- Dimensions: 230mm(L) × 42mm(W) × 25mm(H)
- Protection class: IP54 (standard), IP67 with optional wiper
Ultra-compact dual-rod cylinder featuring symmetrical force transmission and precise linear motion. The through-rod design eliminates piston rotation, ideal for applications requiring position synchronization or accessory mounting on both rod ends. Features wear-resistant guide bushings and integrated mounting slots for flexible installation.
- PCB handling robots - parallel gripper mechanisms
- Semiconductor wafer clamping systems
- Precision dosing valves in medical devices
- Automatic lens positioning in optical equipment
- Cartesian coordinate pick-and-place units
Installation tip:
Maintain 0.5mm minimum clearance between rods and external components.
For vertical mounting, use MBS foot style with lock nuts. Lubricate with ISO VG32
hydraulic oil before first use. Avoid side loads exceeding 5N.
| Property | Property Value |
|---|---|
| sku | MID12X150S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | 12mm |
| Stroke | 150mm |
