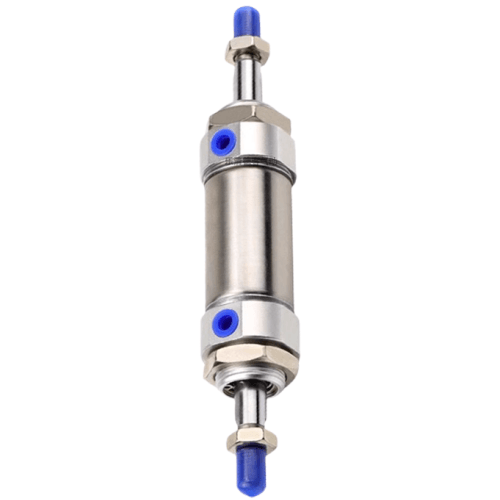

Airtac AirTAC MID Series Double Rod Mini Cylinder MID12X30S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID12X30S Double Rod Mini Cylinder Specifications
- Model: MID12X30S
- Type: Double-acting, dual piston rod
- Bore size: 12mm
- Stroke: 30mm (±1mm tolerance)
- Operating pressure: 0.05–0.9 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer (both ends)
- Port size: M5x0.8 (G1/8 optional)
- Piston rod material: Hardened SUS304 stainless steel
- Seal material: NBR (nitrile) with wear-resistant ring
- Weight: 215g ±5g (without accessories)
- Dimensions:
- Body diameter: 26mm
- Total length: 102mm (extended)
- Rod diameter: 4mm (per rod)
- Mounting hole spacing: 20mm (center-to-center)
- ISO standard: 6431 (VDMA 24562)
- Lubrication: Pre-lubricated (DOP-free grease)
Ultra-compact dual-rod cylinder with symmetrical force output, featuring anodized aluminum barrel for corrosion resistance. The through-rod design ensures precise linear motion synchronization, ideal for clamping/pushing applications requiring balanced force distribution. Includes built-in magnet for magnetic sensor compatibility (D-M9N series).
- PCB board pressing mechanisms
- Micro-precision alignment in optical equipment
- Laboratory automation grippers
- Pharmaceutical tablet counting machines
- 3D printer filament tensioners
Installation note:
Maximum side load ≤15% of thrust capacity. For vertical mounting,
use mechanical stopper to prevent piston drift. Lubricate every
500km stroke with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | MID12X30S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | 12mm |
| Stroke | 30mm |
