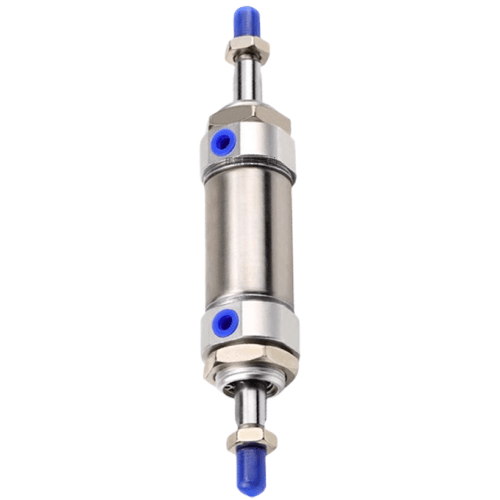

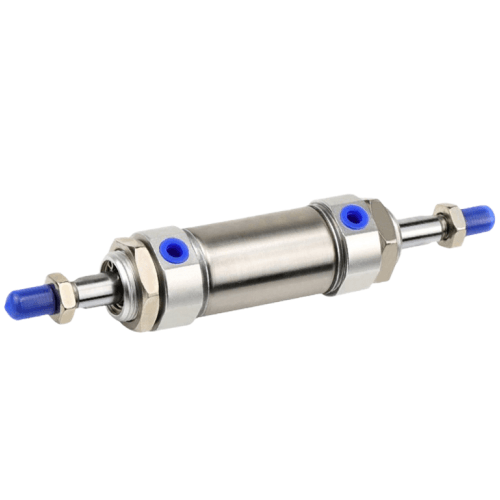

Airtac AirTAC MID Series Double Rod Mini Cylinder MID12X60S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID Series Double Rod Miniature Cylinder MID12X60S Specifications
- Model: MID12X60S
- Bore size: Ø12mm
- Stroke: 60mm
- Operation: Double-acting
- Working pressure: 0.05-0.9 MPa
- Port size: M5×0.8 (standard), NPT1/8 optional
- Cushioning: Adjustable rubber buffer (both ends)
- Piston speed: 50-800 mm/s
- Ambient temperature: -20℃ to 80℃
- Rod material: Stainless steel (SUS304)
- Tube material: Aluminum alloy (hard anodized)
- Seal type: NBR (nitrile rubber) seals
- Weight: 235g ±5g
- Dimensions:
- Length: 125mm (including rods)
- Width: 30mm (cylinder body diameter)
- Height: 34mm (mounting base to rod center)
- ISO standard: 6432 compliant
- Protection class: IP54
Ultra-compact dual-rod pneumatic cylinder featuring symmetrical force output and space-saving design. The twin rod configuration ensures balanced thrust in both directions, ideal for precision positioning tasks. Pre-lubricated for maintenance-free operation with integrated wear-resistant guides for smooth linear motion.
- PCB handling robots in electronics manufacturing
- Precision clamping devices for CNC tooling
- Pharmaceutical tablet pressing mechanisms
- Automated optical inspection (AOI) equipment
- Textile machinery thread control systems
Installation guidelines:
Align cylinder axis within 0.2mm angular misalignment tolerance.
Use Cushion Lock (CL) series brackets for vibration-sensitive applications.
Lubricate rod ends with ISO VG32 hydraulic oil if operated below -10℃.
| Property | Property Value |
|---|---|
| sku | MID12X60S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | 12mm |
| Stroke | 60mm |
