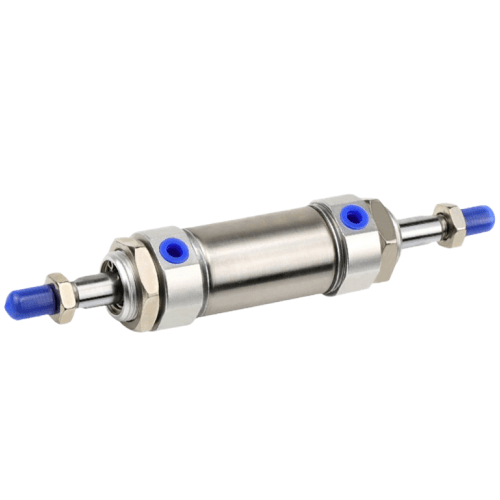

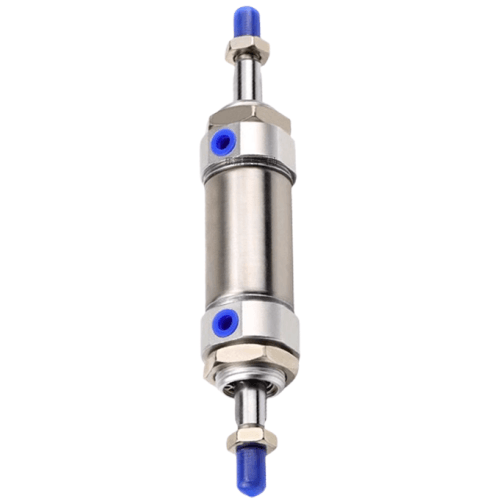

Airtac AirTAC MID Series Double Rod Mini Cylinder MID16X300
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID16X300 Double Rod Mini Cylinder Specifications
- Model: MID16X300
- Type: Double-acting, double rod mini cylinder
- Bore size: 16mm
- Stroke: 300mm
- Operating pressure: 0.05–0.9 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer (both ends)
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Piston rod thread: M6x1.0 (double extended rods)
- Material:
- Tube: Aluminum alloy, hard anodized
- Piston rod: Stainless steel (SUS304)
- Seals: NBR (nitrile butadiene rubber)
- Mounting: Standard (no base) with multiple mounting options via rod-end threads
- Weight: 820g ±2% (with rods)
- Dimensions:
- Total length: 378mm (stroke 300 + end caps)
- Body diameter: 25mm
- Mounting width: 40mm (across flats)
Ultra-slim dual-rod pneumatic cylinder optimized for symmetric force applications. Features synchronized dual-piston movement with precision ground rods, ideal for clamping and positioning tasks requiring balanced thrust. Corrosion-resistant construction with IP54 protection rating. Max piston speed: 500mm/s. Lubrication-free operation with self-compensating seals.
- Precision alignment in semiconductor wafer handling
- Simultaneous gripper actuation in pick-and-place robots
- Medical device sterilization chamber door locks
- Textile machinery thread tension control
- 3D printer bed leveling mechanisms
Installation note:
Maintain parallel alignment of dual rods during mounting. Use flexible couplings when connecting to loads. For full-stroke operation, allow 5mm extra clearance at both ends. Pre-lubricate with ISO VG32 hydraulic oil if used in high-cycle applications (>5Hz).
| Property | Property Value |
|---|---|
| sku | MID16X300 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | 16mm |
| Stroke | 300mm |
