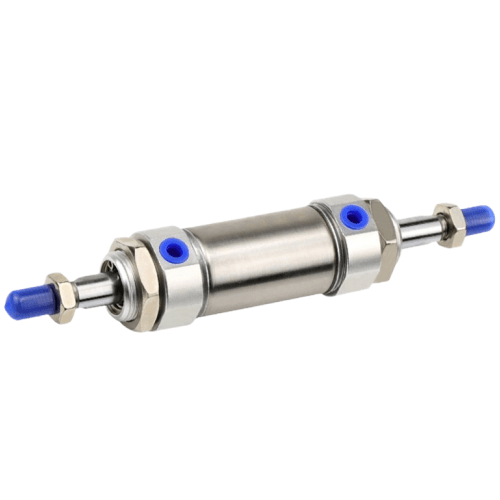

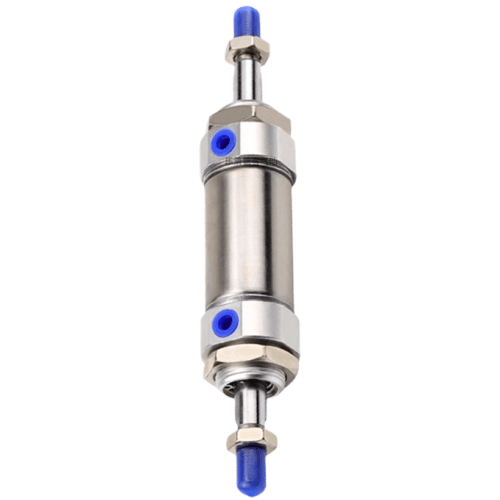

Airtac AirTAC MID Series Double Rod Mini Cylinder MID20X250S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID20X250S Double Rod Mini Cylinder Specifications
- Model: MID20X250S
- Bore size: Ø20 mm
- Stroke: 250 mm
- Operating pressure: 0.05–1.0 MPa
- Piston speed: 50–800 mm/s
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer (both ends)
- Port size: M5x0.8 (standard) / NPT1/8 (optional)
- Rod material: Hard chrome-plated steel
- Cylinder tube: Aluminum alloy with oxidation resistance
- Seal type: NBR seals (standard) / Fluororubber (FKM) available
- Mounting type: Basic (no bracket) with multiple mounting options: FA/FC/MB series brackets compatible
- Weight: 1.25 kg (with rods)
- Dimensions:
- Total length: 326 mm (cylinder body + 2x rods)
- Body diameter: Ø32 mm
- Rod diameter: Ø8 mm
- Port spacing: 20 mm center-to-center
Ultra-slim dual-rod pneumatic cylinder optimized for bidirectional force applications requiring symmetrical load distribution. Features twin chrome-plated rods for enhanced lateral stability and reduced deflection during extended strokes. The compact aluminum body (ISO 6432 compliant) enables high-density mounting in automated systems. Includes built-in magnetic piston for sensor compatibility.
- Precision alignment fixtures in semiconductor manufacturing
- Simultaneous clamping mechanisms in CNC tool changers
- Material positioning gates in packaging lines
- Counterbalance systems in robotic articulation joints
- Test equipment requiring dual-axis synchronization
Installation tip:
Maintain parallel alignment of dual rods during mounting. Lubricate with ISO VG32 hydraulic oil
if operating below 0.3 MPa. For vertical installations, use speed controllers to prevent piston slam.
| Property | Property Value |
|---|---|
| sku | MID20X250S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <20mm> |
| Stroke | <250MM> → <250mm> |
