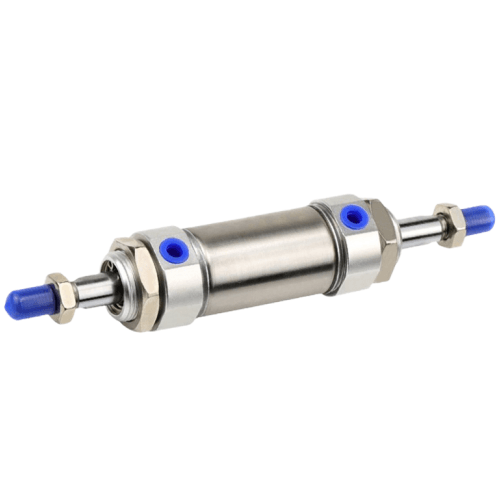

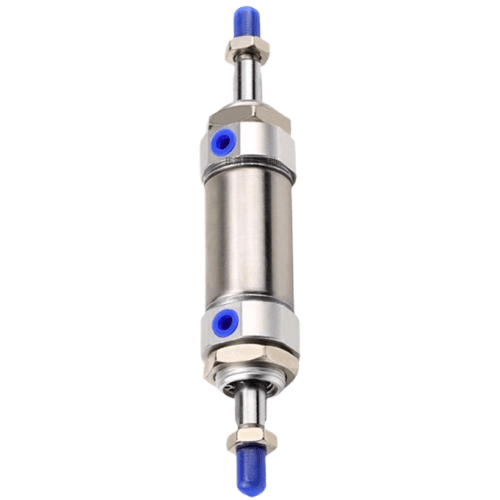

Airtac AirTAC MID Series Double Rod Mini Cylinder MID25X80
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID25X80 Double Rod Mini Cylinder Specifications
- Model: MID25X80
- Bore size: Ø25mm
- Stroke: 80mm (±5mm adjustable)
- Operating pressure: 0.1–0.9 MPa
- Port size: M5×0.8 (Rc1/8 adapter optional)
- Cushioning: Rubber buffer + adjustable shock absorber
- Piston speed: 50–800 mm/s
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Rod material: Stainless steel (SUS304)
- Body material: Anodized aluminum alloy
- Weight: 580g ±3% (without accessories)
- Dimensions: 189mm(L) × 40mm(W) × 40mm(H) (full extension)
- Mounting: Standard ISO 15552 front flange with 4×M5 threads
- Repeat accuracy: ±0.2mm
- Protection rating: IP54 (standard seals)
High-precision dual-rod cylinder featuring symmetrical force output and enhanced lateral load capacity. The through-rod design ensures precise positioning synchronization, with chromium-plated piston rods providing corrosion resistance. Includes magnetic piston for sensor compatibility and optional auto-switch mounting slots.
- Precision alignment systems in semiconductor manufacturing
- Dual-gripper mechanisms in pick-and-place robots
- Simultaneous clamping applications in CNC fixtures
- Compact packaging machine ejectors
- Laboratory automation requiring bidirectional force balance
Installation tip:
Maintain parallel alignment of dual rods during mounting. Use alignment jigs
for multi-cylinder setups. Lubricate with ISO VG32 hydraulic oil before initial
operation. Avoid side loads exceeding 15N on rod ends.
| Property | Property Value |
|---|---|
| sku | MID25X80 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | 80 mm |
