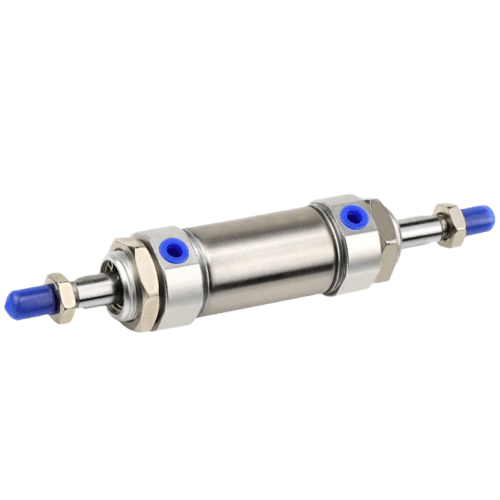

Airtac AirTAC MID Series Double Rod Mini Cylinder MID32X200S
2. Front/rear covers with integrated cushion rings to minimize reversing impact;
3. Versatile rear cover configurations for simplified installation flexibility;
4. Crimped structure securely connects stainless steel cylinder barrel with front/rear covers for enhanced joint reliability;
5. Stainless steel piston rod and cylinder barrel provide corrosion resistance in mildly corrosive environments;
6. Multiple specifications and mounting accessories available for diverse application needs.
Category: Double Rod Cylinders , Brand: AirTAC , Series: MID
AirTAC MID32X200S Double Rod Mini Cylinder Specifications
- Model: MID32X200S
- Type: Compact double-rod pneumatic cylinder
- Bore size: 32mm
- Stroke: 200mm
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Piston speed: 50–800 mm/s
- Cushioning: Adjustable rubber buffer (both ends)
- Mounting style: Front flange (MF1), rear flange (MB1), or foot mount (MP2)
- Port size: M5x0.8 (standard), G1/8 optional
- Ambient temperature: -20℃ to 80℃
- Piston rod material: Stainless steel (SUS304)
- Cylinder tube: Hard anodized aluminum alloy
- Seal material: Nitrile rubber (NBR) standard; Polyurethane (PU) optional
- Protection rating: IP40 (standard), IP67 with optional wiper
- Weight: 1.23 kg (with standard accessories)
- Dimensions:
- Total length: 242mm (stroke 200 + end caps)
- Body diameter: 32mm ±0.5mm
- Rod diameter: 12mm (both sides)
- Mounting hole spacing: 40mm (vertical) × 25mm (horizontal)
Ultra-slim dual-rod actuator engineered for bidirectional force applications requiring symmetrical movement. Features twin chrome-plated rods for balanced load distribution and anti-rotation design with precision keyway alignment. Integrated magnet slots enable position sensing compatibility. Lubrication-free operation with self-compensating wear resistance.
- Precision clamping fixtures in CNC machining centers
- Simultaneous door actuation in cleanroom equipment
- Material gate control in packaging lines
- Optical lens positioning systems
- Battery cell compression in EV manufacturing
Installation guidelines:
Ensure rod alignment within ±0.2° angular tolerance. Use flexible couplings when connecting to guided mechanisms. For vertical mounting, install rod-down orientation with 0.3MPa minimum pressure to prevent seal wear. Perform 50 break-in cycles before full-load operation.
| Property | Property Value |
|---|---|
| sku | MID32X200S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <200mm> |
